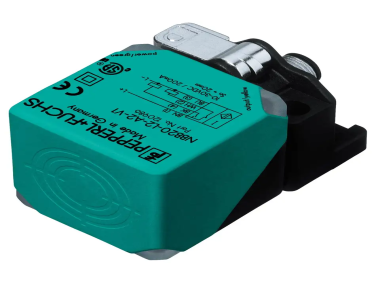

Pepperl+Fuchs Inductive sensor NBN40-L2-E2-V1

  • NG # 04177-HW-PEP-059

  • MF # NBN40-L2-E2-V1

The NBN40‑L2‑E2‑V1 is an industrial inductive proximity sensor with a 40 mm non‑flush sensing range, designed for reliable detection of metallic targets in automation applications. It features a 3‑wire DC PNP output, robust IP68/IP69K protection, and a rotatable sensor head with clear LED indicators for high visibility and versatile installation.

Manufactured By :
Pepperl+Fuchs
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The NBN40‑L2‑E2‑V1 inductive sensor is engineered for industrial sensing tasks requiring dependable detection of metal objects without physical contact. It provides a non‑flush installation style, high environmental protection ratings, and clear state indication with multiple LEDs. The rotatable sensor head and quick mounting bracket enable flexible positioning in a variety of applications. Certified to international standards, this sensor supports automation systems with stable PNP output and robust electrical performance.

Specification

General Characteristics

  • Sensing principle: Inductive proximity sensing of metallic objects
  • Rated operating distance (sn): 40 mm
  • Installation: Non‑flush mount
  • Output type: PNP, normally open (NO)
  • Output polarity: DC

Electrical Ratings

  • Operating voltage (UB): 10 … 30 V DC
  • Operating current (IL): 0 … 200 mA
  • No‑load supply current (I0): ≤ 20 mA
  • Voltage drop (Ud): ≤ 2 V
  • Switching frequency: up to 180 Hz
  • Hysteresis typ.: approx. 5 %
  • Reverse polarity and short‑circuit protection included

Indicators and Feedback

  • Operating voltage LED indicator (green)
  • Switching state LED indicator (yellow)

Mechanical and Environmental

  • Housing material: PA (polyamide)
  • Sensing face: PA
  • Connection: M12 x 1 connector, 4‑pin
  • Degree of protection: IP68 / IP69K
  • Ambient temperature range: ‑25 … 85 °C
  • Storage temperature: ‑40 … 85 °C

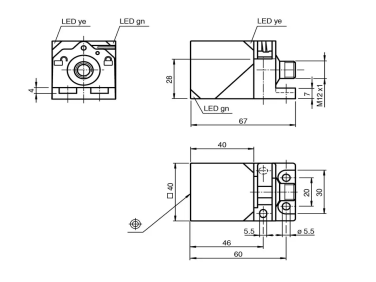

  • Dimensions: 40 mm (height) × 40 mm (width) × 67 mm (length)
  • Mass: approx. 130 g

Performance & Compliance

  • Standards conformity: EN IEC 60947‑5‑2
  • Protection class II (rated insulation voltage Ui: 253 V)
  • UL cULus listed for general purpose load and Class 2 power source
