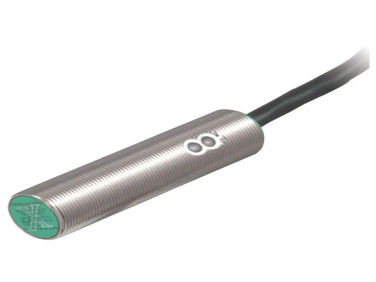

Pepperl+Fuchs Inductive sensor NBB8-18GM60-US

  • NG # 04170-HW-PEP-052

  • MF # NBB8-18GM60-US

Industrial inductive proximity sensor with an 8 mm flush switching distance, two‑wire AC/DC operation, and robust metal housing designed for reliable object detection in harsh environments.

Manufactured By :
Pepperl+Fuchs
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The NBB8‑18GM60‑US inductive sensor detects metallic targets without physical contact. It features a compact cylindrical housing, high protection class, and standard industrial ratings. The sensor’s two‑wire AC/DC design simplifies wiring and installation, while built‑in protections improve operational reliability. It is suitable for factory automation and general object detection applications.

Specification

General Specifications

  • Sensor type: Inductive proximity sensor
  • Switching function: Normally open (NO)

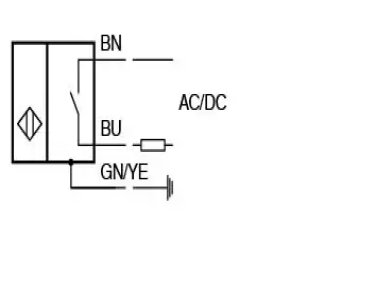

  • Output type: Two‑wire AC/DC
  • Rated operating distance (sn): 8 mm
  • Installation: Flush mounting
  • Reduction factors: rAl 0.45, rCu 0.4, r304 0.7

Electrical Ratings

  • Rated operating voltage: 20 … 250 V AC/DC
  • Rated operating current: 4 … 300 mA AC/DC
  • Voltage drop (Ud): ≤ 8 V
  • Switching frequency: 30 Hz

Protection and Indicators

  • Reverse polarity protection: Yes
  • Short‑circuit protection: Yes
  • Operating temperature: –25 … 70 °C
  • Storage temperature: –40 … 85 °C

Mechanical & Connection Details

  • Housing material: Brass, nickel‑plated
  • Sensing face: PBT
  • Degree of protection: IP67
  • Cable length and type: 2 m PUR cable
  • Cable cores: 3, core cross‑section 0.5 mm²

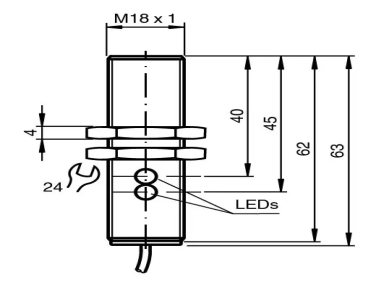

  • Dimensions: Approx. 63 mm length, ∅ 18 mm

Compliance

  • Product conforms to relevant industrial sensor standards
