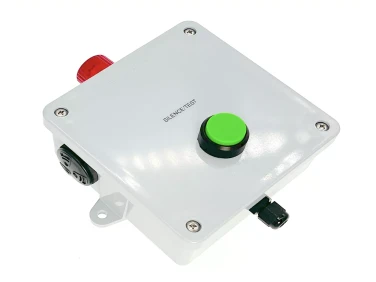

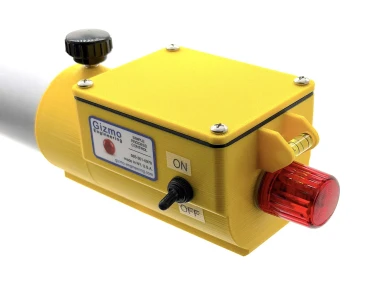

RA-4 Barrel Mount Plating Barrel Alarm detects when a plating barrel stops rotating and immediately alerts operators with a loud 103 dB buzzer and flashing LED. Battery powered and waterproof, it uses a magnetic target and reed switch sensor for reliable rotation monitoring.
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteThe RA-4 Barrel Mount Plating Barrel Alarm helps prevent scrap and costly rework by detecting unexpected stoppage of plating barrel rotation. A magnetic target and reed switch monitor barrel movement, while a float switch ensures alarms activate only when the barrel is submerged. If rotation stops beyond the preset time, a loud 103 dB buzzer and flashing LED alert operators. The compact, battery-powered IP65 enclosure is built for harsh plating environments.
Specification
Enclosure dimensions……………………………. 4x4x2 inch
Display opening…………………………………… 54×24 mm
Digit height………………………………………… 18 mm
Power consumption when not alarming………… 11µA
Buzzer diaphragm………………………………… 316 stainless steel
Timing accuracy…………………………………… ± 0.1%
Timing precision (repeatability)…………………… ± 0.001%
Battery capacity…………………………………… 1250mA-hr
Power consumption when alarming……………… 30mA
Sound pressure level……………………………… 103dB @ 2 feet
Weight (with battery)……………………………… 530g

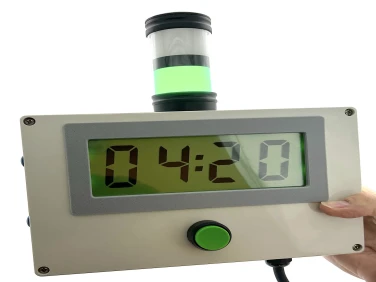

Industrial Production Timer (T5)
