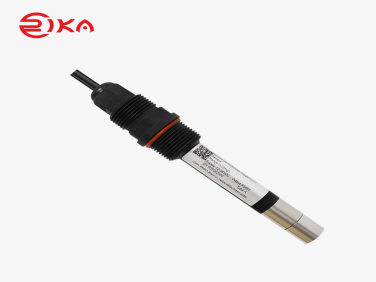

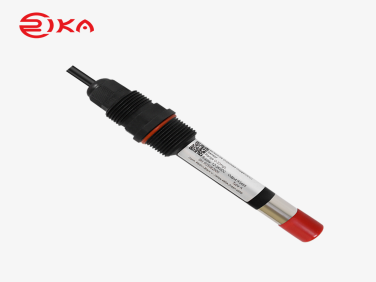

RK500-04 Type-A Optical Dissolved Oxygen (DO) Probe（Economy）

  • NG # 04333-HW-RIK-022

The RK500-04 Type-A Optical Dissolved Oxygen Probe is a high-precision water quality sensor designed for real-time measurement of dissolved oxygen (DO) and temperature in aquatic environments. It uses advanced fluorescence quenching technology to deliver stable, accurate, and low-maintenance performance, making it suitable for aquaculture, wastewater treatment, rivers, reservoirs, and environmental monitoring applications.

Manufactured By :
Rika Sensor
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The RK500-04 Type-A Optical DO Probe is engineered for reliable and continuous monitoring of water quality in both natural and industrial environments. It combines dissolved oxygen and temperature sensing in a single compact device, providing real-time data with strong stability and fast response.

Built on fluorescence-based measurement principles, the sensor eliminates the need for oxygen-consuming chemical reactions, ensuring long-term accuracy and minimal maintenance requirements. It is resistant to flow variations and water ion interference, making it suitable for harsh and dynamic water conditions.

This probe is widely used in freshwater aquaculture, agricultural irrigation systems, rivers, channels, wastewater treatment plants, and environmental monitoring projects. Its robust IP68 protection rating allows for direct immersion or pipeline installation, ensuring dependable operation even in challenging field conditions.

Specification

  • Measurement Parameters: Dissolved Oxygen (DO) and Temperature
  • DO Range: 0–20 mg/L
  • Temperature Range: 0–60°C
  • DO Accuracy: ±0.3 mg/L
  • Temperature Accuracy: ±0.5°C
  • Resolution: 0.01 mg/L (DO), 0.1°C (Temperature)
  • Response Time: T90 < 100 seconds
  • Stability: Drift < 0.3 mg/L per year
  • Output Signals: RS485 and 4–20 mA simultaneous output
  • Power Supply: 7–30 VDC
  • Power Consumption: < 0.2 W
  • Protection Rating: IP68 (waterproof, submersible)
  • Operating Temperature: -5°C to +60°C
  • Working Pressure: 0.8 MPa
  • Material: 316L stainless steel (sensor cap) + ABS body
  • Installation: Direct immersion or pipeline mounting (NPT3/4 thread)
  • Cable Length: 5 m standard, customizable
  • Weight: Approx. 0.7 kg
