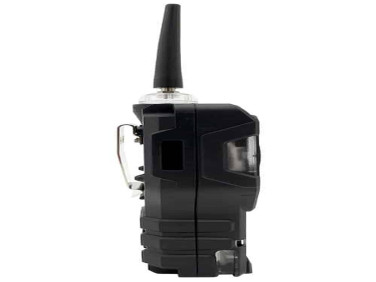

RKI 72-FAAA10 GX-Force Personal Gas Detector with Sample Draw Pump - LEL, O2, CO, H2S, With Probe and 10' Line

  • NG # 1475-HW-RKI-001

  • MF # 72-FA-A-A10

Manufactured By :
RKI
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The GX-Force is RKI’s smallest personal 1-4 gas monitor with a strong internal sample pump capable of a 100’ sampling range. Weighing only 9.8 ounces, the GX-Force can monitor the standard confined space gases (LEL combustibles, Oxygen, Carbon Monoxide, and Hydrogen Sulfide).  Built around high-quality micro-sensor technology.

With the GX-Force, you have multiple tools in one instrument. Having 2 operating modes, the GX-Force can be used for confined space, safety monitoring in its Normal Operating mode. A Leak Check mode is the solution for all leak investigations.

The GX-Force operates 30 hours on a Li-ion battery, and has a large LCD display showing all gas readings, battery level, current time and automatically backlights in alarm conditions. Standard alarm types include vibration, visual, and audible alarms, which can be set to latching or non-latching. Controlled by a microprocessor, the GX-Force continuously checks itself for sensor connections, low battery, circuit trouble, low flow, and calibration errors.

Calibration and bump test intervals and reminders are user adjustable and can be set to either go into alarm or to lock the user out of normal measurement mode once a calibration period has expired. Calibration can be done individually or in a group.

In Leak Check Mode, the GX-Force, can monitor for combustibles in the ppm range.

Specification

Sampling MethodInternal sample pump, flow rate nominal 0.5 LPM, includes hydrophobic filter
Suction Flow RateMinimum 0.35 L/min (open flow rate)
Gas Alarm PatternLamp flashing, continuous modulating buzzer sounding, gas concentration display flashing, vibration
Gas Alarm Reset OperationSelf-resetting or latching
Fault Alarm/Self-DiagnosisSystem, clock, or sensor abnormality; battery voltage drop; calibration failure;
pump abnormality; low flow rate
Fault Alarm PatternLamp flashing, intermittent buzzer sounding, detail display
Fault alarm reset operationSelf-resetting
DisplayLCD digital (7-segment + 14-segment + icons) with backlight
Individual OperationsOperational status, clock, battery level, peak reading, pump status, calibration notification
Sound PressureApprox. 90 dB (30 cm)
Data Logger FunctionMaximum storage capacity: 3,600 items Interval: 5 minutes (adjustable)
Communication SpecificationsUSB, 2.0 (for data logger) Connector: Type-C
Power SourceRechargeable lithium ion battery, USB Type-C power cord
Continuous Operating TimeApprox. 30 hours (25 °C, fully charged, no alarm, no backlight)
Operating Ambient
Temperature /Humidity Range		-20 °C to +50 °C (no sudden changes), 0 – 95 % RH (no condensation)
(-4 °F to +122 °F)
ApprovalsIntrinsically safe construction



IECEx (Ex da ia IIC T4 Ga/Ex ia IIC T4 Ga)

ATEX (II1G Ex da ia IIC T4 Ga/II1G Ex ia IIC T4 Ga)

CertificationsATEX / IECEx, QPS (pending)
Protection LevelIP67 equivalent
External Dimensions / WeightApprox. 2.52 (W) × 6.81 (H) × 1.85 (D) (excluding protrusions) / Approx. 9.87 oz.
WarrantyThree years material and workmanship
