RKI Instruments RP-3R Sample Drawing Pump for GX-3R PRO Series Detector

  • NG # 1477-HW-RKI-003

Manufactured By :
RKI
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

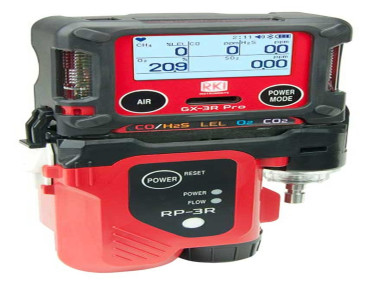

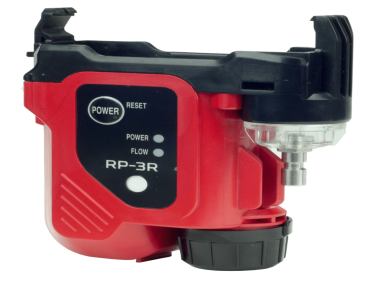

The RP-3R are compact, battery operated, motorized sample drawing pumps which attach to either the GX-3R or the GX-3R Pro to change them from diffusion operation to sample drawing operation.
The model RP-3R pumps and the GX-3R or GX-3R Pro gas monitor make a complete solution for confined space entry.

The RP-3R is housed in a rugged plastic case with a quick disconnect fitting for hose attachment. It is provided with a 4″ tapered red rubber nozzle. A hose and probe are available as optional accessories. Hose lenghts of 10′ to 100′ are available. The probe is equipped with an internal dust filter and clear body for easy viewing. The RP-3R uses one AA battery and will operate for up to 10 hours in normal mode (higher flow mode) with an optional ECO mode (lower-flow mode) that can last up to 16 hours. The pump quickly and firmly snaps onto the GX-3R or GX-3R Pro gas monitor and is easily removed when sampling is complete. No tools are required.

A push button POWER switch is used to activate the RP-3R, and the POWER LED illuminates when the RP-3R is on. If a low flow condition occurs, the FLOW LED flashes and an audible alarm will sound.

The POWER LED flashes if low battery occurs.

Specification

  • Pump Specifications
    Flow RateHigher flow mode: 0.5 l/m

    Lower flow mode (ECO mode): 0.35 l/m

    Alarm DisplayLow flow alarm: Flow blinks YELLOW

    Low battery alarm: Power LED blinks GREEN

    Power Supply1 AA alkaline battery
    Continuous OperationHigher flow mode: 10 hours

    Lower flow mode (ECO mode): 16 hours

    Operating temperature-4° F to + 122° F (no sudden change)
    Operating humidity range95% RH or less (without condensation)
    External Dimensions3.23″ (W) x 3.78″ (H) x 1.14″ (D) (body only)
    Weight4.58 oz
    Explosion ProofIntrinsically safe construction
    ATEX/IECEx, Exia II CT 4 Ga
    Standard Accessories4″ tapered red rubber nozzle, AA alkaline battery,
    & hydrophobic filters
    Optional Accessories10′ – 100′ hose, 10″ probe with dust filter

CATALOGS

RKI Instruments RP-3R Datasheet
