Schmalz - MATCH Vacuum Generators ECBPi ABB Kit

  • NG # 2120-HW-ABB-020

Schmalz - MATCH Vacuum Generators ECBPi ABB Kit

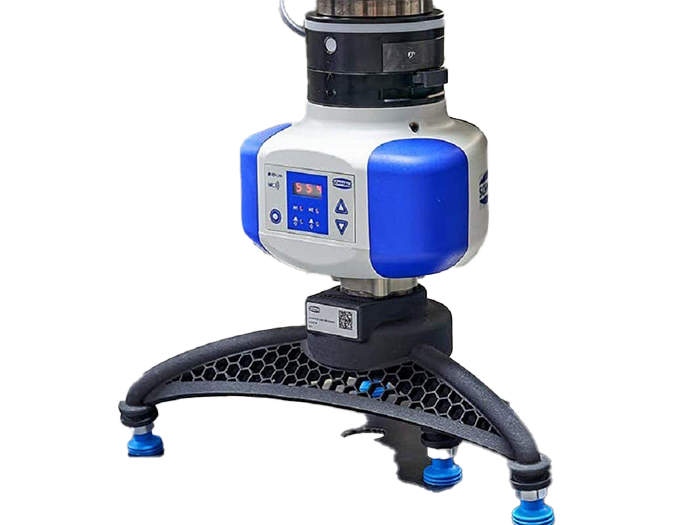

Intelligent electric vacuum generator for handling suction-tight workpieces

Manufactured By :
ABB
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

• Intelligent electric vacuum generator for handling suction-tight workpieces

• Ready to use for the MATCH end-of-arm ecosystem, with vacuum and mechanical gripper compatibility

• MATCH  automatic & manual quick changer  (digital IO / manual change with one hand)

• Suction rate up to 12 l/min

• Max. vacuum: 75 %

• Easy installation and commissioning (Plug & Work)

• Purely electric vacuum generation

• NFC and IO-Link interface

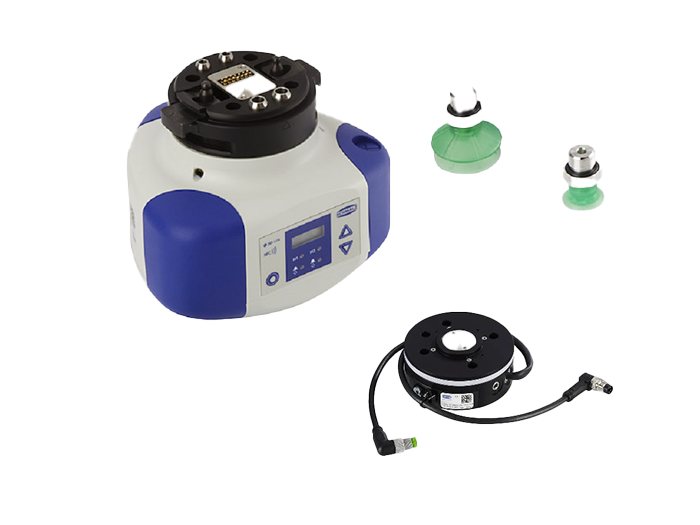

 The kit also includes:

• Vacuum generator with gripper for handling suction-tight workpieces

• Flat and bellows suction cups included

• Mechanical connection system MATCH for easy installation (Plug & Work)

Specification

Technical Data ECBPi

Type  Suction Rate Max.[I/min] Rated Power[W] Rated Current[A] Operating temperature
ECBPi 12 13 0.6 5...45°C

Design Data Handling Sets ECBPi

D[mm] H[mm]
151.5 188.8
