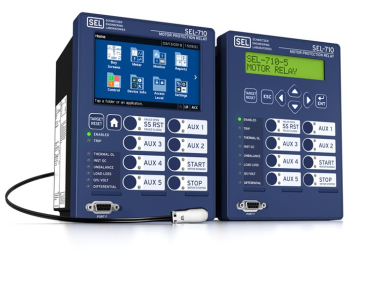

SEL-710-5 Motor Protection Relay

  • NG # 03850-HW-SEL-019

Protect asynchronous (induction) and synchronous motors with one SEL-710-5 Motor Protection Relay. Features include broken rotor bar detection and variable-frequency drive (VFD) support as well as options for arc-flash detection (AFD), differential protection, and synchronous motor protection. The synchronous option supports power factor regulation and includes, at no additional cost, a voltage divider accessory to interface with the motor excitation system.

Manufactured By :
SEL
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

An optional 5-inch, 800 × 480 color touchscreen display allows you to directly set, monitor and control your system, including up to five two- or three-position disconnect switches. You can quickly integrate the SEL-710-5 into serial-or Ethernet-based communications schemes with IEC 61850 Edition 2, IEC 60870-5-103, the IEC 62439 Parallel Redundancy Protocol (PRP), Mirrored Bits communications, Modbus, DNP3, EtherNet/IP, the Rapid Spanning Tree Protocol (RSTP), the IEEE 1588 Precision Time Protocol (PTP), and other protocols. Together with the AccuTrack Thermal Model, these features provide a great solution for all of your motor protection applications.

Specification

  • Motor Thermal Overload Protection
  • Advanced Protection
  • Optimized Start Times
  • Easy Communications
  • Accelerated Firmware Downloads
  • Simple Network Time Protocol
  • Optional Touchscreen Display
  • Expanded SELogic Control Equations
  • Motor Thermal Overload Protection
