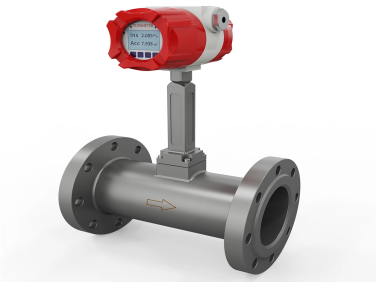

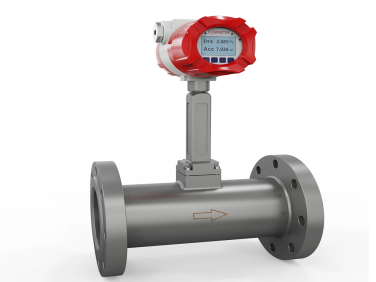

Supmea SUP-LUGB Vortex flowmeter without temperature & pressure compensation

  • NG # 03792-HW-SUPMEA-007

Manufactured By :
Supmea
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

SUP-LUGB Vortex flowmeter work on the principle of generated vortex and relation between vortex and flow by theory of Karman and Strouhal, which specialize in measurement of steam, gas and liquid of lower viscosity.

Specification

Product Vortex flowmeter
 Model SUP-LUGB
 Diameter nominal DN15~DN300
 Installation Wafer connection: DN15-DN300(priority PN2.5MPa);   Flange connection: DN15-DN50(priority PN2.5MPa);DN65-DN200(priority PN1.6MPa);DN250-DN300(priority PN1.0MPa）
 Accuracy Gas without compensation: DN15-DN25--1.5%, DN32-DN200--1.0%, DN250-DN300--1.5%
 Liquid without compensation: DN15-DN300-- 1.0%
 Temperature and pressure compensation: DN25-DN300-- 1.5%
 Range Ratio Gas density:1.2kg/m3, Range ratio: 8:1
 Liquid density:1000kg/m3, Range ratio: 8:1
 when the medium density is different, the range ratio will change
 Medium Temperature -20°C ~ +150°C、-20°C ~ +260°C、-20°C ~ +300°C
 Output signal 4-20mA
 Frequency RS485 communication (Modbus RTU)
 Power supply 24VDC±5%  Li battery(3.6VDC)
 Ingress protection IP65
 Body Materials Stainless shell
 Display 128*64 dot matrix LCD
