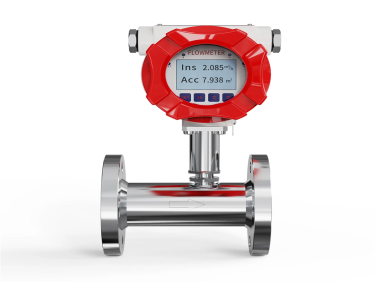

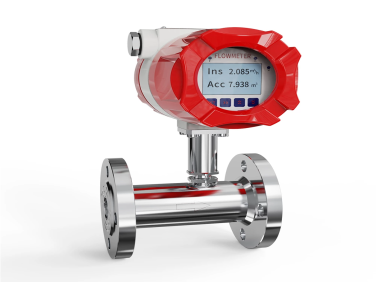

Supmea SUP-LWGY Turbine flowmeter flange connection

  • NG # 03796-HW-SUPMEA-011

SUP-LWGY series liquid turbine flowmeter is a kind of speed instrument, which has the advantages of high accuracy, good repeatability, simple structure, small pressure loss and convenient maintenance.

Manufactured By :
Supmea
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

It is used to measure the volume flow of low viscosity liquid in closed pipe. In the petroleum, chemical, metallurgy, water supply, paper and other industries with a wide range of applications.

Specification

 Product Turbine flowmeter
 Model SUP-LWGY
 Diameter Nominal DN4~DN200
 Atmospheric Pressure 86kPa～106kPa
 Accuracy 0.5%R, 1.0%R
 Medium viscosity Less than 5×10-6m2/s
 (for the liquid with >5×10-6m2/s,
 the flowermeter needs to be calibrated before using)
 Medium Temperature -20℃～＋120℃
 Power Supply 3.6V lithium battery; 220VAC; 24VDC
 Output Signal Pulse, 4-20mA, Modbus, Hart
 Ingress protection IP65 (IP67, IP68 protocol supply, pulse converter probe IP00)
