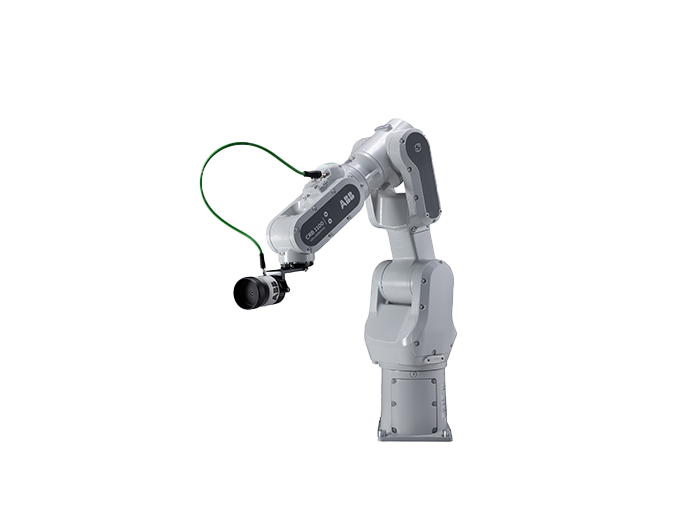

SWIFTI™ CRB 1100 is a lightning-fast cobot that combines industrial-level performance and innovative safety.
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteSWIFTI™ CRB 1100 is a lightning-fast cobot that combines industrial-level performance and innovative safety. It combines the best of both worlds: collaborative safety and high performance and precision.
SWIFTI™ CRB 1100 is a lightning-fast cobot that combines industrial-level performance and innovative safety. It combines the best of both worlds: collaborative safety and high performance and precision.
SWIFTI bridges the gap between collaborative and industrial robots. It enables proven safe collaborative operation even in applications that demand industrial-level speed and lifting capabilities.
SWIFTI offers a maximum Tool Center Point (TCP) speed of over 5 meters per second, 5 times faster than other 4Kg robots and comparable with industrial robots.
No experience in programming robots? No problem, lead-through programming, plus our graphical Wizard easy programming and Safe Move configurator App on the Flex Pendant help reduce the complexity.
Key features:

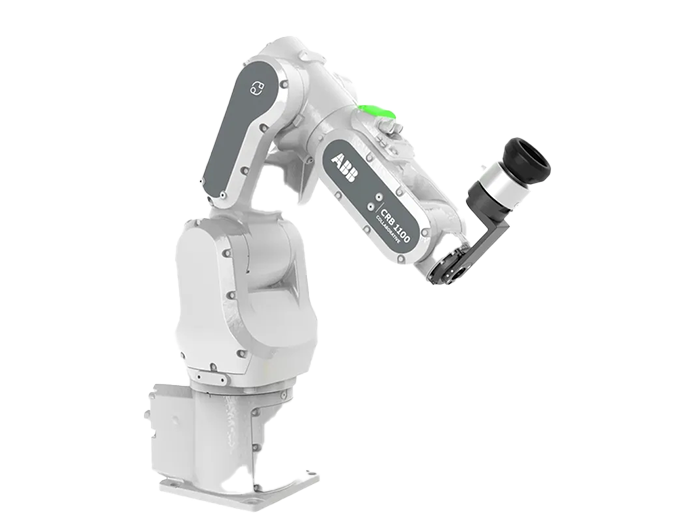

Collaborative safety
– Supervised by SafeMove and safety sensor
– Stop safely before contact with a human
– Interaction status light
– Safety certified Category 3, PL d
Applications
– Assembly
– Insertion
– Kitting
– Material Handling
– Machine tending
– Polishing
– Screw-driving
– And many more…
| Robot version | Reach (m) |
Payload (kg) |
Armload (kg) |
| CRB 1100-4/0.475 | 0.475 | 4 | 0.5 |
| CRB 1100-4/0.58 | 0.58 | 4 | 0.5 |
| Number of axes | 6 | ||
| Protection | Standard IP40 | ||
| Mounting | Any angle | ||
| Controller | OmniCore C30 | ||
| Integrated signal and power supply |
Up to 12 signals (C1 + C2) on upper arm |
||
| Integrated air supply | 4 air on the wrist (Max. 6 Bar) | ||
| Integrated ethernet | One 1000 Base-T ethernet port (C2) | ||
| Tool flange | Standard ISO 9409-1-31.5-4 M5 | ||
| Functional safety | SafeMove Collaborative included All safety functions certified to Category 3, PL d |
||
