NG # 01553-HW-TESTO-025
MF # 01553-HW-TESTO-025
SKU # 01553-HW-TESTO-025

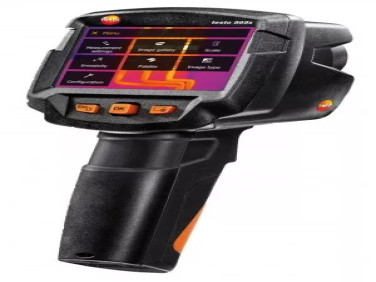

Suitable for professional industrial and building thermography, this thermal imager features SuperResolution technology with 640 x 480 pixels and thermal sensitivity of 50 mK. Versatile and reliable, this imager provides the best possible support for your work with its many functions and integrated laser marker.
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteSuitable for various applications, this reliable imager can detect locations at risk of developing mold, pinpoint thermal bridges, discover structural defects and identify overheated connections. Additionally, this imager features ε-Assist, IFOV warner, and the ScaleAssist function.
Specification
| Infrared Resolution | 320 x 240 pixels |
| Thermal Sensitivity (NETD) | <0.09°F (0.05°C) (50 mK) |
| Field of View/Minimum Focusing Distance | 42 x 30°/<1.6' (0.5 m) |
| Geometric Resolution (IFOV) | 2.3 mrad |
| SuperResolution (Pixel/IFOV) | 640 x 480 pixels, 1.3 mrad |
| Image Refresh Rate | 9 Hz |
| Focus | Fixed |
| Spectral Range | 7.5 to 14 μm |
| Image Presentation | |
| Image Display | 3.5" (8.9 cm) TFT, QVGA |
| Digital Zoom | 2x, 4x |
| Display Options | IR image/real image |
| Color Palettes | Iron, rainbow, rainbow HC, cold-hot, blue-red, grey, inverted grey, sepia, Testo, iron HT |
| General Specifications | |
| Measurement | Ranges 1: -22 to 212°F (-30 to 100°C) 2: 0 to 1202°F (0 to 650°C) manual/automatic switchover Accuracy: ±3.6°F (±2°C), ±2% of measurement value (higher value applies) Emissivity/reflected temperature compensation: 0.01 to 1/manual ε-Assist: Automatic recognition of emissivity and determination of reflected temperature (RTC) |
| Measurement Functions | Analysis: Centre point measurement, hot/cold spot detection, delta T ScaleAssist: Yes IFOV warner: Yes Humidity mode manual: Yes Solar mode manual: Input of solar radiation value Electrical mode manual: Input of current, voltage or power |
| Lens | 42 x 30° |
| Laser | Laser class 2 |
| Video Streaming | Via USB via Wi-Fi with Thermography App |
| File Format | .bmt and .jpg; export options in .bmp, .jpg, .png, .csv, .xls |
| Memory | Internal memory (2.8 GB) |
| Image Size/Minimum Focusing Distance | 5 MP/minimum 1.6' (0.5 m) |
| Wi-Fi Connectivity | Communication with the Thermography App |
| Power Supplies | Battery type: Lithium-ion rechargeable battery exchangeable on site Operating time: 4 hours Charging option: In instrument |
| Temperature Ranges | Operating: 5 to 122°F (-15 to 50°C) Storage: -22 to 140°F (-30 to 60°C) |
| Air Humidity | 20 to 80% RH, not condensing |
| Housing Protection Class (IEC 60529) | IP54 |
| Vibration (IEC 60068-2-6) | 2G |
| System Requirements | Windows 8.1 and 10 |
| EU Directive | EMC: 2014/30/EU RED: 2014/53/EU |
| Housing | PC - ABS |
| Dimensions | 8.6 x 3.8 x 3.7" (219 x 96 x 95 mm) |
| Weight | 1.12 lbs (510 g) |
