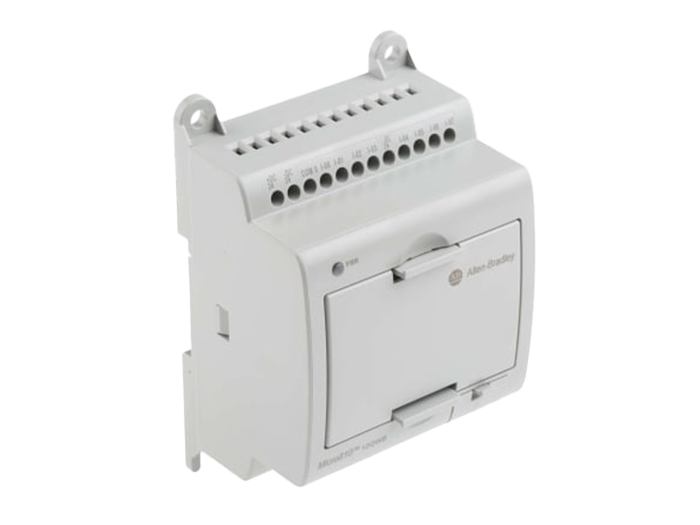

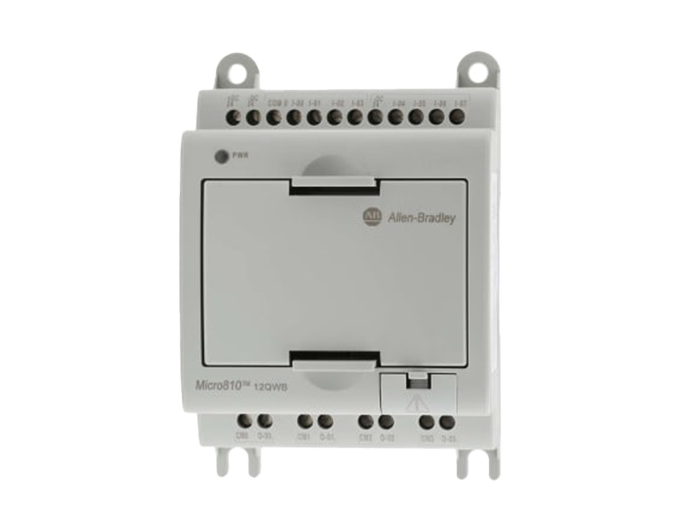

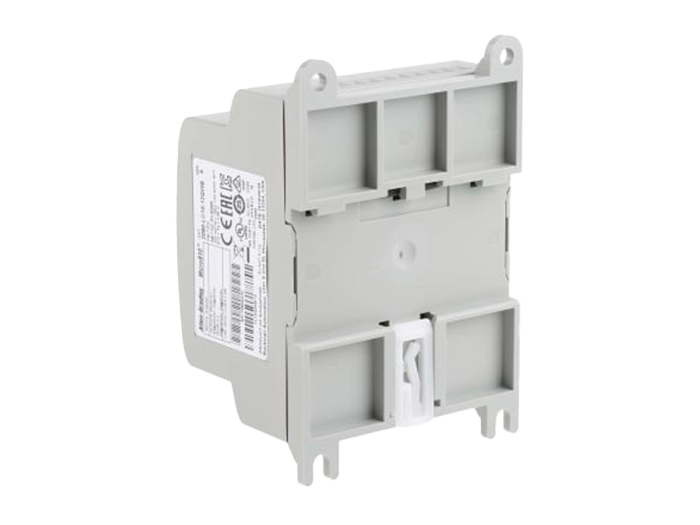

Allen Bradley Micro810 Series PLC CPU, Analogue, Digital Output, 8-Input, Analogue, Digital Input

  • NG # 02678-HW-ALBR-017

  • MF # 2080-LC10-12QBB

Manufactured By :
Allen Bradley
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

Micrologix 810 PLC - CPU


The Micro810 12 Point controller is an economical brick-style controller with embedded inputs and outputs. It can accomodate a USB adapter and an LCD module. It can also accomodate any 24V dc output power supply that meets minimum specifications such as the optional Micro800™ power supply.


The Micro810 controller functions as a smart relay with high current relay outputs, but with the programming capabilities of a micro PLC
As part of the Micro800 family, the Micro810 controller shares programming environment, plug-ins and accessories
12-pt form factor provides:
8A outputs eliminates the need for external relays
DC models allow 4 inputs to function as 4 0 → 10V analog inputs
Program download via USB programming port (adapter required, stock no. 750-8668)
Optional 1.5” local LCD for monitoring/modifying application data (variables). It also functions as a backup memory module
Configure and run core smart relay function blocks without programming (LCD required, stock no. 750-8661)
20-pt form factor and 26-pt form factor additionally have:
Embedded non-isolated serial port for HMI and communications to other devices
Up to 2 plug-in slots for adding analog I/O, serial port, etc

Specification

Manufacturer SeriesMicro810
Number of Inputs8
Output TypeAnalogue, Digital
Input TypeAnalogue, Digital
Number of Outputs4
Voltage Category24 V dc
Network TypeUSB
Kit IncludedYes
Dimensions91 x 75 x 59 mm
Program Capacity2 kB
Depth59mm
Length91mm
Width75mm
Number of Communication Ports1
Memory4 kB
Maximum Operating Temperature+65°C
Minimum Operating Temperature-20°C
