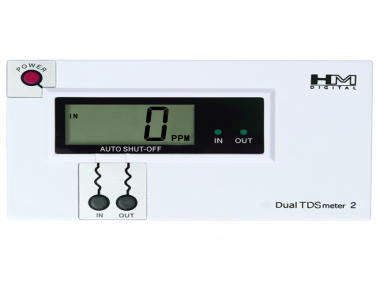

DM-2: Commercial In-Line Dual TDS Monitor

  • NG # 04257-HW-HM-016

The HM Digital DM‑2 is a commercial‑grade in‑line dual TDS (Total Dissolved Solids) monitor designed to continuously measure and display the TDS levels of both feed (input) and product (output) water in water filtration systems. Engineered for accuracy and durability, it features digital calibration and shielded sensor cables, making it suitable for applications ranging from reverse osmosis systems to aquariums and hydroponics.

Manufactured By :
HM Digital
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The DM‑2 commercial in‑line dual TDS monitor provides reliable, real‑time water quality monitoring by measuring the total dissolved solids in both source and purified water streams. Built with advanced microprocessor technology, this robust device not only delivers precise TDS readings but also incorporates features like automatic shut‑off to conserve battery life and diagnostic messaging for troubleshooting. Factory digital calibration ensures consistent performance right out of the box, and shielded sensor cables help maintain accurate readings in a range of environments. Thanks to its commercial‑grade construction and easy‑to‑read display, the DM‑2 is well suited for use in reverse osmosis and deionization systems, potable water treatment, aquariums, hydroponic systems, and other settings requiring continuous water quality assessment.

Specification

  • Measurement Range: 0–9990 ppm dual range (0–999 ppm at 1 ppm resolution; 1000–9990 ppm at 10 ppm resolution with blinking “x10” indicator)
  • Accuracy: ±2%
  • Conversion Factor: NaCl (average 0.5)
  • Cable Length: 46″ including shielded sensor cables
  • Sensor: Dual 1/4″ diameter probes (model SP‑3)
  • Calibration: Factory digital calibration to 342 ppm NaCl; individual line recalibration possible
  • Power Source: 2 × AA batteries (included)
  • Battery Life: Approximately 2 years
  • Display Type: LCD display with easy‑to‑read output
  • Dimensions: 11.6 × 6.8 × 1.8 cm (4.6 × 2.6 × 0.7 in)
  • Weight: 201.3 g (7.1 oz)
