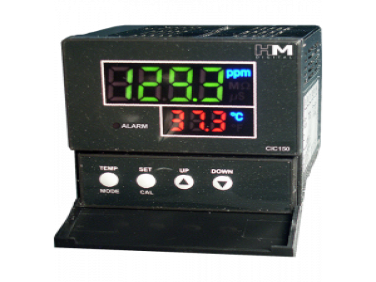

CIC150-N/ CIC-150-4: Single Control Dosing/Injection TDS/EC

  • NG # 04251-HW-HM-010

The HM Digital CIC‑150‑N / CIC‑150‑4 is a precision single control dosing and injection controller designed for monitoring and controlling a single Total Dissolved Solids (TDS) or Electrical Conductivity (EC) line. It features extended measurement ranges, dual alarms, adjustable set points, digital calibration, and reliable relay control for automated pump or solenoid valve operation.

Manufactured By :
HM Digital
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The CIC‑150 series from HM Digital provides accurate and flexible control of water quality in applications requiring precise TDS or EC monitoring. Built to manage one dosing or injection system at a time, this controller offers extended range detection, clearly visible temperature display, and user‑adjustable set points for both upper and lower limits. With two dependent alarms and robust stainless steel electrodes, it ensures reliable detection and control for processes that demand consistency and accuracy. The unit supports either NaCl or 442 conversion factors and includes easy‑to‑use on‑screen controls for calibration and set point adjustments. Its solid construction and dependable electrical relay outputs make it suitable for industrial and laboratory environments.

Specification

  • Measurement range: 0–5000 ppm (mg/L) NaCl; 0–8500 ppm (mg/L) 442; 0–9999 µS
  • Resolution: 0–999: 0.1 ppm/µS; 1000–8500: 1 ppm/µS
  • Accuracy: ±2% full scale
  • Automatic Temperature Compensation (ATC): Yes (1–65°C)
  • Calibration: Digital to any point
  • Set points: Adjustable via on‑screen buttons
  • Relay control: Two relays for upper and lower limits
  • Relay switching specification: 5A, 250VAC
  • Alarms: Two dependent (maximum and minimum)
  • Display: Bright tri‑color LED with temperature display
  • Sensor cable: 1/2” threaded NPTF with 3 m (9.8 ft) cable
  • Power source: AC 110V / 220V
  • Dimensions: 7.2 × 7.2 × 10.2 cm (2.8 × 2.8 × 4.0 in.)
  • Weight: 436 g (15.4 oz)
