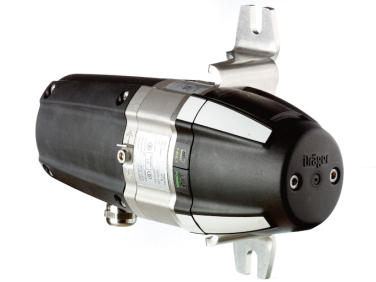

Dräger PIR 7200

  • NG # 006310-HW-Dräger-010

An explosion-proof point infrared gas detector designed for continuous carbon dioxide monitoring, featuring drift-free optical technology and a rugged construction for reliable performance in harsh industrial environments.

Manufactured By :
Dräger
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

This infrared detector ensures accurate, long-term CO₂ measurement through stable, drift-free optics that minimize calibration needs. Its explosion-proof housing delivers safe operation in hazardous areas, while the robust mechanical design resists extreme temperatures, vibration, and dust. Ideal for industries that require dependable, continuous gas monitoring with reduced maintenance effort.

Specification

TypeTransmitter
Measuring PrincipleInfrared
Response time< 1 second (fast response)
Cable entryM25 or 3/4" NPT
DisplayNo
Intrinsic SafetyNo
FlameproofYes
Increased SafetyYes
SILSIL 2 (IEC 61508-1-3)
4-20 mAYes
BusNo
HART®Yes

Technical Data

Power Supply13 to 30 VDC, 3-wire
Temperature (operation)-40°C - 77°C
Humidity0 to 100% r.h.
Pressure (hPa)700 - 1300
Dimensions (H × W × D)8.9x16x8.9 cm
Weight2.2 Kg
Housing MaterialStainless steel SS316 L
Degree of protection (IP class)IP66/67

Approvals

Shipping approval (MED)No
ATEXYes
IECExYes
ULYes
CSAYes
CE markingYes
GOST (EAC)No
Performance approvalNo
