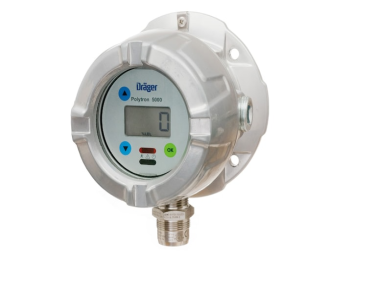

Dräger Polytron 5200 CAT

  • NG # 006315-HW-Dräger-015

A cost-effective, explosion-proof transmitter for flammable gas detection that uses a catalytic-bead DrägerSensor® Ex and provides a standard 3-wire 4–20 mA analogue output for reliable integration with most control systems.

Manufactured By :
Dräger
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

This transmitter is designed for reliable, continuous detection of combustible gases in hazardous locations. Housed in an explosion-proof enclosure, it protects electronics and the sensor assembly from ignition sources while the catalytic-bead DrägerSensor® Ex provides proven, fast response to hydrocarbon vapours. With a 3-wire 4–20 mA output and simple wiring, the device plugs into PLCs, DCS, fire panels, or standalone controllers without special interfaces, making it an economical choice for refineries, chemical plants, storage areas and confined spaces.

Specification

TypeTransmitter
Measuring PrincipleCatalytic Bead Sensor
Response time
Cable entryM20 or 3/4" NPT
DisplayYes
Intrinsic SafetyNo
FlameproofYes
Increased SafetyYes
SILSIL 2 (IEC 61508-2)
4-20 mAYes
BusNo
HART®No
WirelessNo

Technical Data

Power Supply10 to 30 V, 3-wire
Temperature (operation)-40°C - 80°C
Humidity0 to 100 % r.h., non-condensing
Pressure (hPa)700 - 1300
Dimensions (H × W × D)28x15x13 cm
Weight4 Kg
Housing MaterialEpoxy coated copper-free aluminum or stainless steel SS 316L
Degree of protection (IP class)IP65/66/67

Approvals

ATEXYes
IECExYes
ULYes
CSAYes
CE markingYes
GOST (EAC)Yes
Performance approvalYes
Shipping approvalNo
FMNo
