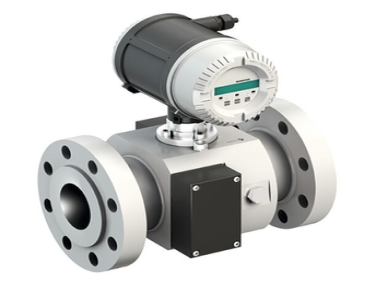

Endress+Hauser FLOWSIC600 DRU-S ultrasonic flowmeter

  • NG # 006225-HW-ENDRESS-025

The FLOWSIC600 DRU-S is a compact ultrasonic gas flowmeter engineered for gas production, delivering precise and stable measurement even in challenging wellhead and gas-lift conditions. Its rugged “wet-gas-robust” design ensures reliable operation under high liquid loads.

Manufactured By :
Endress+Hauser
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

Designed to replace multiple orifice plates with its wide 1:100 measuring range, the FLOWSIC600 DRU-S provides continuous, maintenance-friendly gas flow measurement. It supports remote access for monitoring measurement values and diagnostic data, enhancing operational efficiency and uptime in production environments.

Specification

Measuring principle

Ultrasonic transit time difference measurement

Measured variables

Volumetric flow a. c., volume a. c., gas velocity, sound velocity

Measuring Medium

Natural gas, Associated gas , Raw Natural gas

Repeatability

± 0.2 % of the measured value
(between Qt and Qmax depending on the installation requirements)

Accuracy

Error limits Qt ... Qmax ± 2 %

Medium temperature range

–40 °C ... +100 °C / –40 °F … 212 °F

Operating pressure range

0 bar(g) … 16 bar(g) / 0 psi(g) … 230 psi(g) for ANSI CL150
0 bar(g) … 100 bar(g) / 0 psi(g) … 1450 psi(g) for ANSI CL600

Nominal pipe size

2" / 3" / 4"

Hazardous area approvals

IECEx:
Gb/Ga Ex db eb ib [ia Ga] IIA T4
Ultrasonic transducer, intrinsically safe

ATEX:
II 1/2 (1) G Ex ia/ db eb ia [ia Ga] IIA T4 …T1 Ga/Gb
Ultrasonic transducer, intrinsically safe

NEC/CEC (US/CA):
Class I, Division 1, Group D T4
Class I, Division 2, Group D T4
Ultrasonic transducers intrinsically safe

Digital Outputs

2 DO and 1 FO:
30 V, 10 mA
Passive, galvanically isolated, open collector, fmax = 6 kHz (scalable)

Digital communication

RTU RS-485 (2x, for configuration, data output and diagnostics)
ASCII RS-485 (2x, for configuration, data output and diagnostics)
