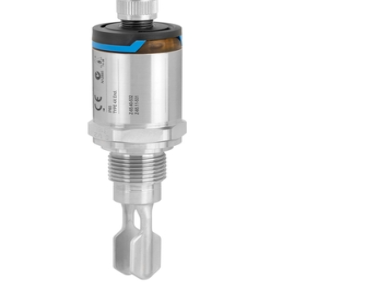

Endress+Hauser Vibronic Point level detection Liquiphant FTL31

  • NG # 006217-HW-ENDRESS-017

The Liquiphant FTL31 is a highly reliable point level switch designed for detecting liquid levels in a wide range of industrial applications, especially within the machinery sector. Built with a robust stainless-steel (316L) construction, it ensures long-term durability even in demanding environments. Its IO-Link connectivity enables effortless parameterization, making integration into modern automation systems simple and cost-efficient. With no moving parts and full self-monitoring capabilities, the FTL31 provides dependable overfill protection and pump dry-run prevention without the need for calibration or specialized tools.

Manufactured By :
Endress+Hauser
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The Liquiphant FTL31 delivers accurate and safe switching performance, completely independent of changing media properties such as conductivity, viscosity, turbulence, or air bubbles. Designed for high environmental and quality standards, it continues to operate safely even in the event of power supply issues. Its plug-and-play functionality and modular design offer configuration flexibility across different process temperatures, connection types, and accessory options. With maintenance-free operation and easy IO-Link configuration, it reduces system complexity, supports efficient engineering, and ensures reliable liquid level monitoring across varied applications.

Specification

Measuring principle

Vibration Liquids

Characteristic / Application

Level switch for liquids and is used in tanks, vessels
and pipes.

Supply / Communication

20 ... 253V AC/DC, 2-wire
10 ... 30V DC-PNP 3-wire

Ambient temperature

-40 °C ... 70 °C
(-40 °F ... 158 °F)

Process temperature

-40 °C ... 150 °C
(-40 °F ... 302 °F)

Process pressure / max. overpressure limit

Vacuum ... 40 bar
(Vacuum ... 580 psi)

Min. density of medium

>0,7g/cm³
(>0,5g/cm³ optional)

Main wetted parts

316L

Process connection

Threads:
G1/2, G3/4, G1, MNPT1/2, MNPT3/4, MNPT1, R1/2, R3/4, R1

Communication

AC/DC, DC-PNP

Certificates / Approvals

CSA C/US, EAC

Safety approvals

Overfill protection WHG
Leakage

Design approvals

EN 10204-3.1

Marine approval

ABS/ LR/ BV/ DNV

Options

Adjustment switching delay
Cleaned from oil+grease,
PWIS free

CATALOGS

Vibronic Point level detection Liquiphant FTL31
