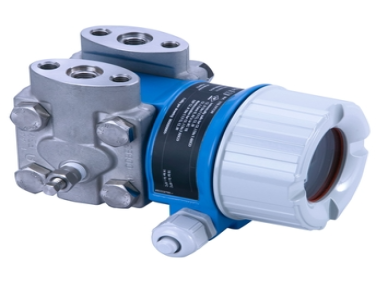

Endress+Hauser Differential pressure Deltabar PMD55

  • NG # 006221-HW-ENDRESS-021

The Deltabar PMD55 is a reliable differential pressure transmitter featuring a piezoresistive sensor and a welded metallic membrane. It provides continuous measurement of pressure differences in liquids, gases, and vapors, making it ideal for a wide range of industrial and environmental applications.

Manufactured By :
Endress+Hauser
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

Designed for easy commissioning, the Deltabar PMD55 offers a Quick Setup function with an adjustable measuring range that helps reduce installation time and costs. Its SIL2 compliance (IEC 61508 / IEC 61511) ensures high functional safety, while its robust construction supports long-term stability and dependable process performance.

Specification

Measuring principle

Differential pressure

Characteristic

Digital transmitter with metallic measuring diaphragms
Compact size
Modular transmitter
Long-term stability

Supply voltage

4...20 mA HART
11,5...45V DC (Non Ex):
Ex ia: 11,5...30V DC
PROFIBUS PA:
9...32 V DC (Non Ex)
FOUNDATION Fieldbus:
9...32 V DC (Non Ex)

Reference Accuracy

Standard 0.1%
Platinum 0.075%

Long term stability

0.05% of URL/ year
0.13% of URL/ 5 years
0.23% of URL/ 10 years

Process temperature

-40°C...+85°C
(-40°F...+185°F)

Ambient temperature

-40°C...+85°C
(-40°F...+185°F)

Measuring cell

10 mbar...40 bar
(0.15...580 psi)

Smallest calibratable span

10 mbar (0.15 psi)

Max. Turn down

20:1

Max. overpressure limit

on one side:
160 bar
(2300 psi)

Process connection

1/4-18 NPT

Material process membrane

316L, AlloyC,

Material gasket

Viton, PTFE, EPDM, NBR

Fill fluid

Silicone oil
Inert oil

Material housing

Die-cast aluminum

Communication

4...20 mA HART
PROFIBUS PA
FOUNDATION Fieldbus

Certificates / Approvals

ATEX, FM, CSA, CSA C/US, IEC Ex, INMETRO, NEPSI, UK Ex

Safety approvals

SIL

Design approvals

NACE MR0175
EN10204-3.1

Successor

PMD55B
