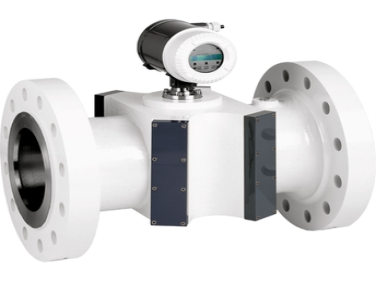

Endress+Hauser FLOWSIC600 ultrasonic flowmeter

  • NG # 006226-HW-ENDRESS-026

The FLOWSIC600 is a high-performance ultrasonic flowmeter engineered for demanding industrial environments. Its compact, robust design with integrated cable routing ensures exceptional durability, low maintenance, and long-term measurement stability.

Manufactured By :
Endress+Hauser
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

Built to operate reliably under harsh conditions, the FLOWSIC600 provides precise flow measurement supported by advanced diagnostics that detect faults early and maintain measurement integrity. With process monitoring based on speed-of-sound analysis, it delivers continuous, fail-safe operation for critical industrial applications.

Specification

Measuring principle

Ultrasonic transit time difference measurement

Measured variables

Volumetric flow, a. c., volume a. c., gas velocity, sound velocity

Measuring Medium

Natural gas, air, C2H4, steam, process gases (e. g. CO2 up to 100%, N2, O2, Cl2 etc.), gases like sour gas or bio gas with high H2S content

Repeatability

< 0.1 % of the measured value

Accuracy

2-path version ≤ ± 1 %

4-path version ≤ ± 0.5 %
Typical accuracy, see application specific data for detailed information

Medium temperature range

ATEX:
–40 °C ... +105 °C at T1, T2, T3;
–40 °C ... +91 °C at T4
Other Ex certifications: –40 °C ... +180 °C

Operating pressure range

0 bar (g) ... 250 bar (g)
On request: Up to 450 bar (g)

Nominal pipe size

2" ... 24"
(DN 50 ... DN 600)

Metrological approvals and certificates

ISO 17089-2
MTBF: 15.4 years

Hazardous area approvals

IECEx:
Gb/Ga Ex db eb ib [ia Ga] IIA T4
Gb/Ga Ex db eb ib [ia Ga] IIC T4
Ultrasonic transducers intrinsically safe

ATEX:
II 1/2 (1) G Ex ia/db eb ia [ia Ga] IIA/IIB/IIC T4...T1 Ga/Gb
III 1/2 (1) G Ex ia/db eb ia [ia Ga] IIC T6 Ga/Gb
Ultrasonic transducers intrinsically safe

NEC/CEC (US/CA):
Class I, Division 1, Groups B, C, D T4
Class I, Division 2, Groups A, B, C, D T4
Class I, Division 1, Group D T4
Class I, Division 2, Group D T4
Ultrasonic transducers intrinsically safe

Digital Outputs

3 outputs:
30 V, 10 mA
Passive, electrically isolated, Open Collector or according to NAMUR (EN 50227), fmax = 6 kHz
(scalable)

Digital communication

Modbus ASCII
Modbus RTU
HART

CATALOGS

FLOWSIC600 ultrasonic flowmeter

Other Endress+Hauser Products

Endress+Hauser Deltabar PMD55B - differential pressure transmitter
Endress+Hauser Business & Industrial Automation 006222-HW-ENDRESS-022

Endress+Hauser Digital pH sensor Memosens CPS11E
Endress+Hauser Business & Industrial Automation 006229-HW-ENDRESS-029

Endress+Hauser Proline Prosonic Flow W 400 ultrasonic clamp-on flowmeter
Endress+Hauser Industrial Tools & Accessories 006205-HW-ENDRESS-005

Endress+Hauser iTEMP TMT162 temperature transmitter
Endress+Hauser Industrial Tools & Accessories 006215-HW-ENDRESS-015

Endress+Hauser FLOWSIC600-XT ultrasonic flowmeter
Endress+Hauser Industrial Tools & Accessories 006204-HW-ENDRESS-004

Endress+Hauser Differential pressure Deltabar PMD75
Endress+Hauser Business & Industrial Automation 006222-HW-ENDRESS-022

Endress+Hauser Compact conductivity device Smartec CLD18
Endress+Hauser Industrial Tools & Accessories 006213-HW-ENDRESS-013

Endress+Hauser Differential pressure Deltabar PMD55
Endress+Hauser Business & Industrial Automation 006221-HW-ENDRESS-021

Endress+Hauser FLOWSIC600 DRU-S ultrasonic flowmeter
Endress+Hauser Business & Industrial Automation 006225-HW-ENDRESS-025

Endress+Hauser Electronic differential pressure Deltabar FMD71
Endress+Hauser Business & Industrial Automation 006219-HW-ENDRESS-019

Endress+Hauser Cleaning and calibration system Liquiline Control CDC90
Endress+Hauser IOT, Robotics & Drones 006212-HW-ENDRESS-012

Endress+Hauser Magphant electromagnetic flowmeter
Endress+Hauser Industrial Tools & Accessories 006218-HW-ENDRESS-018

Endress+Hauser Electronic differential pressure Deltabar FMD72
Endress+Hauser Business & Industrial Automation 006220-HW-ENDRESS-020

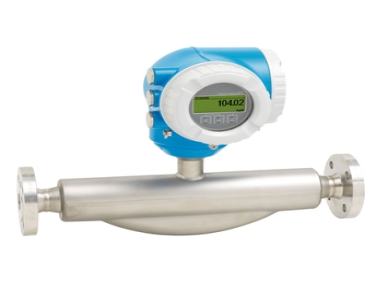

Endress+Hauser Proline Promass F 300 Coriolis flowmeter
