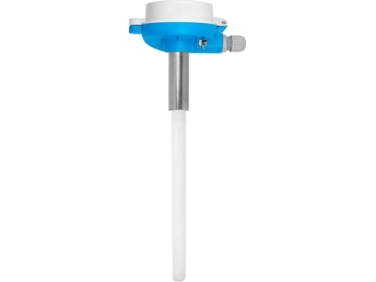

Endress+Hauser iTHERM FlameLine TAF11 High-Temperature Thermometer

  • NG # 006216-HW-ENDRESS-016

These specialized high-temperature thermometers are engineered for extreme industrial environments where conventional temperature sensors cannot operate reliably. Equipped with ceramic thermowells and platinum–rhodium thermocouples, they ensure precise measurement even in processes involving aggressive media or very high thermal loads. The robust thermowell acts as a durable shield against mechanical stress, corrosion, and chemical attack, significantly extending sensor lifespan while safeguarding process integrity.

Manufactured By :
Endress+Hauser
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

Designed for demanding applications, these thermometers offer long-term stability, extended operational life, and optimized maintenance costs. The use of non-porous, wear-resistant thermowell materials ensures reliable sensor protection and consistent measurement accuracy. A modular design allows flexible configuration and easy replacement of spare parts, reducing downtime and lowering lifecycle costs. With improved durability and high-precision performance, these instruments enhance product quality and contribute to safer, more efficient plant operations.

Specification

Measuring principle

Thermocouple

Characteristic / Application

metric style
modular temperature assembly
high temperature probe (furnace)
incl. single ceramic thermowell

Thermowell / protection tube

ceramic protection tube

Insert / probe

ceramic capilarry, rigid

Outer diameter protection tube / Insert

14,0 mm (0,55")
16,0 mm (0,59")
17,0 mm (0,68")
22,0 mm (0,87")
24,0 mm (0,94")
26,6 mm (1,05")

Max. immersion length on request

up to 4.000,00 mm (157,48'')

Material protection tube/ thermowell

Ceramic (C610)
silicon nitride ceramic (SiN)
sintered silicon carbide (SiC)

Process connection

compression fitting:
G3/4"
G1"
G11/2"
adjustable Flange

Tip shape

straight

Operating temperature range

Type K:
-40 °C ...1.300 °C
(-40 °F ...2.372 °F)
Type J:
-40 °C ...750 °C
(-40 °F ...1.382 °F)
Type N:
-40 °C ...1.150 °C
(-40 °F ...2102 °F)
Type S:
0 °C ...1.600 °C
(32 °F ...2.912 °F)
Type R:
0 °C ...1.600 °C
(32 °F ...2.912 °F)
Type B:
600 °C ...1.600 °C
(1.112 °F ...2.912 °F)

Max. process pressure (static)

at 20 °C: 1 bar (15 psi)

Accuracy

class 2 acc. to IEC 60584

Integration head transmitter

yes (4 … 20 mA; HART; PROFIBUS PA; FOUNDATION FIELDBUS)

Certification

SIL (transmitter only)
