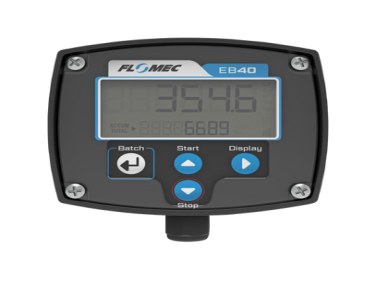

Flomec EB40 Batch Controller

  • NG # 04127-HW-FLO-028

The EB40 single-stage batch controller combines user-friendly installation and operation with rugged durability, making it the perfect solution for a wide range of applications.

Just pair it with a Flomec meter for precise and efficient control of your process resulting in consistent product every time. Take control with our intuitive 4-button interface.

Manufactured By :
Flomec GPI
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

Easily program your desired batch volume and let the controller do the rest. The bright, backlit 6-digit display provides clear visibility, even in challenging
environments.

With a weather-resistant IP66/67 and NEMA4X enclosure, you can trust the EB40 Batch controller to perform reliably, indoors or out. Retain your settings, ensuring consistent operation even after a power loss.

Specification

  • Instrument Type: Batch Controller
  • Mounting Type: Meter and Stem Mount, Wall, Pipe or Panel mount
  • Operating Temperature Range: -30°C - 80°C
  • Engineering Units: Litres, Cubic Metres, US Gallons, Imperial Gallons, Millilitres (Cubic Centimetres), Quarts, Fluid Ounces, Cubic Feet, Barrels, Kilograms, Pounds, or Custom.
  • Display & Totals: Large dual line LCD with 6 characters 17mm high on top line, 8 characters 7mm high on bottom line. Backlit (external power)
  • Control Option: Single Stage
  • Input Types & Frequency: Reed Switch – (120Hz), NPN (hall effect sensor) – (2kHz), Variable Reluctance Coils (Turbine Flowmeters) – (2kHz), Weigand Sensors (voltage pulse signals) – (2kHz), Coil (15mV pk-pk min.)
  • Control Outputs: NPN (open collector, sinking) output, 30Vdc / 1A maximum
  • Enclosure: Glass reinforced Nylon (PA6) with a Polycarbonate lens, Santoprene gasket, polyester decal. Enclosure provides an IP rating of IP65 Optional powder coated Aluminium enclosure
  • Power Requirements: Regulated 12V ~ 30V DC
