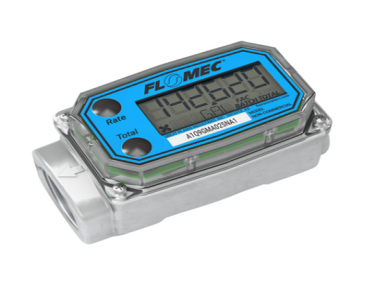

Flomec A1 Series Flow Meter - Aluminium

  • NG # 04112-HW-FLO-013

FLOMEC® A1 Series Flow Meter - Aluminium flow meters are designed as self-contained, battery-powered units, making them the ultimate flow meter you can depend on for accurate, reliable, and repeatable results.

Manufactured By :
Flomec GPI
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

A large digital display with multiple totals and readings that have the capacity for external outputs and user configuration makes the A1 series versatile and capable of measuring both high and low flow rates.

Specification

  • Unique package combines Turbine and LCD into a self-contained, compact, economical meter.
  • Local Display Computer features: 2 Totals (1 Resettable, 1 Cumulative); Rate of Flow and User Configuration.
  • Output capabilities available to communicate with process control equipment.
  • Lightweight, compact design allows for easy installation.
  • Alkaline battery life: 2 years
  • Factory calibration in gallons and litres (can also be held calibrated to other fluids).
  • Technology: Turbine
  • Flow Range: 1 - 11 L/min | 11 - 190 L/min
  • Accuracy: ± 1.5% (Application Dependant)
  • Pressure Rating: 20.7 bar (300 psi)
  • Operating Temperature Range: -18° C - 54° C
