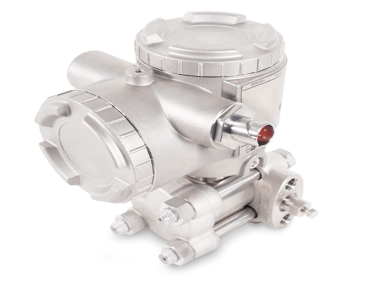

Get A QuoteFKA pressure transmitters in the FCX-AIV family accurately measure absolute pressure and convert it into a directly proportional 4-20 mA output signal. At the heart of the measuring element is a micro-capacitive silicon transducer with a proven track record in the process industry. The digital signal processing carried out by the electronics unit ensures outstanding accuracy and stability. The FCX-AIV family of pressure transmitters complies with integrity and safety levels SIL2 (HFT=0) and SIL 3 (HFT=1) in accordance with standards IEC 61508 and IEC 61511.
| Housing | L- or T-shaped housing |
| Measuring ranges (kPa) [e.max.] | 16 130 500 3000 |
| Weight per kg (without indicator) | 3,4 |
| Accuracy | ± 0,2 % ± 0.1% available as an option |
| Materials in contact with the process | Stainless steel 316, Stainless steel 316 L, Stainless steel 316 L + Gilding |
| Case materials | Standard: low-copper aluminum alloy with polyurethane epoxy coating (2 layers). Option: 316 stainless steel |
| Membrane materials | Stainless steel 316 L Stainless steel 316 L + gilding |
| Stability | ± 0.2% of max. scale for 3 years. |
| Elevation / Deletion | Equal to the upper limit of static pressure. |
| Scale setting range | |
| Measurement cycle | |
| Communication protocol | HART 7 communication protocol |
| Process temperature | -40 to +85°C (silicone oil) -20 to +80 °C (fluorinated oil) |
| Ambient temperature | from -25 to +55°C -20 to +55 °C (digital indicator option) -20 to +55 °C (fluorinated oil option) |
| Power supply | 10.5 to 53 Vdc |
| Output signal / Load resistance | 4-20 mA / 250 Ω typical |
| Damping | Configurable from 0.12 to 32 seconds |
| Zero and span adjustment | Zero and span can be set from the FXW handheld the FXW handheld communicator and with the external screw located on the electronic box. |
| Electrical connections | M20 x 1.5 or ATEX explosion-proof cable gland, or Sub-base Souriau 8N35, or Sub-base Souriau 8N45S, or Souriau subbase 8N45, or SAIB NU25 subbase ref. 251-103-401 / M20 x 1.5 (compatible with 8N45 on the Park), or Jaeger base with M20 x 1.5 thread ref.536 006 006 |
| Options | Analog indicator (accuracy: 1.5%), configurable digital indicator, oxygen service, degreasing treatment, additional nameplate |
