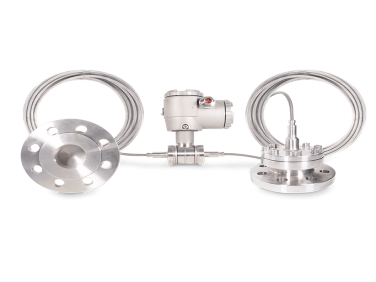

Fuji Electric Nuclear diaphragm seals differential pressure transmitter - FKD - NC - K3

  • NG # 03598-HW-FUJI-015

Manufactured By :
Fuji Electric
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The pressure transmitter, FCX-AII series electronic transmitter is a device that accurately measures differential, gauge or absolute pressure and converts it into a directly proportional 4-20 mAcc output signal. It is used to measure differential, absolute and gauge pressure, flow, level or density. The heart of the measuring element is a silicon micro-capacitive sensor. In addition, the electronic unit benefits from the latest microprocessor technology.

Specification

HousingL- or T-shaped housing
Measuring ranges (kPa) [e.max.]32
130
500
3000
Weight per kg (without indicator)6
Accuracy± 0,07 %
Case materials316 stainless steel.
Stability± 0.1% of max. scale for 3 years.
Elevation / DeletionEqual to the upper limit of static pressure.
Communication protocolHART™ 7 communication protocol
Process temperaturefrom -25 to +55°C
-20 to +55 °C (digital indicator option)
Ambient temperatureSee datasheet for operating temperatures. diaphragm seals
Power supply10.5 to 53 Vdc
Output signal / Load resistance4-20 mA / 250Ω typical
DampingConfigurable from 0.12 to 32 seconds
Zero and span adjustmentZero and span can be set from the FXW handheld
the FXW handheld communicator and with the external screw
located on the electronic box.
Electrical connectionsM20 x 1.5 or
ATEX explosion-proof cable gland, or
Sub-base Souriau 8N35, or
Sub-base Souriau 8N45S, or
Souriau subbase 8N45, or
SAIB NU25 subbase ref. 251-103-401 / M20 x 1.5
(compatible with 8N45 on the Park), or
Jaeger base with M20 x 1.5 thread ref.536 006 006
OptionsAnalog indicator (accuracy: 1.5%), configurable digital indicator, oxygen service, degreasing treatment, additional nameplate
