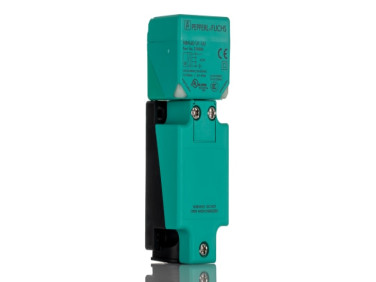

Pepperl + Fuchs Inductive Block Proximity Sensor, 40 mm Detection, 2-Wire NO/NC, 20 → 253 V ac, 20 → 300

  • NG # 03009-HW-PEP-029

  • MF # NBN40-U1-UU

Manufactured By :
Pepperl+Fuchs
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

’Varikont’ Switches


The Varikont series of inductive proximity sensors are highly versatile due to their compact dimensions, easy installation via standard terminal base and ease of maintenance due to the 4 LEDs visible from all angles, making the possible applications endless.


Features and benefits


DIN 'limit switch' style PBT housing and sensing face
Connections via terminal compartment
Keyway to ensure correct replacement
Sensor head multi-positional relative to base
LED status display
Operating temperature range –25 → +70°C



Block and Limit Switch Style


All dc switches in this range have reverse polarity and short circuit protection. Embeddable versions can be flush mounted in metal.

Specification

Sensor TechnologyInductive
Body StyleBlock
Detection Range40 mm
Digital Switching Output Type2-Wire
Output FunctionNO/NC
Connection TypeScrew Terminal
Supply Voltage20 → 253 V ac, 20 → 300 V dc
Length118mm
IP RatingIP67
Mounting TypeNon-Flush
Width40mm
Housing MaterialMetal, Nylon 66
Maximum DC Voltage300V
Minimum Operating Temperature-25°C
ShieldingUnshielded
Depth40mm
Short Circuit Overload ProtectionYes
Maximum AC Voltage253V
Maximum Switching Frequency100Hz
Switching Current500 mA
Standards MetCCC, CE, cULus, EN 60947-5-2, IEC 60947-5-2
Switching Frequency100 Hz
Maximum Operating Temperature+85°C
Reverse Polarity ProtectionYes
