KELLER Series 10LHP

  • NG # 04019-HW-KELLER-041

Manufactured By :
Keller Druck
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

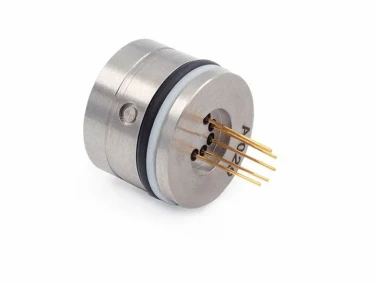

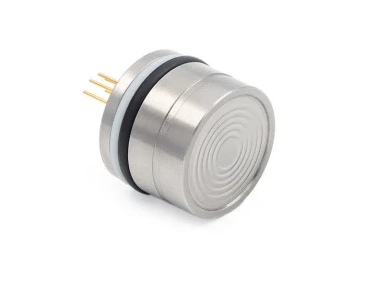

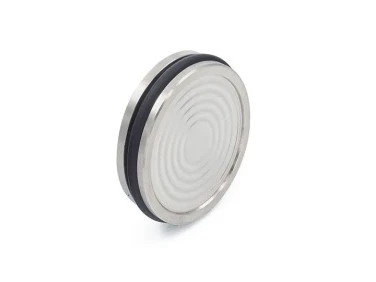

The high-pressure transducers of the 10LHP series have robust housing of stainless steel, giving them optimum long-term stability for a range of OEM applications. The metal diaphragm is welded on front-flush and gap-free, separating off the piezoresistive pressure sensor made of silicon from the measuring medium. Every pressure transducer is measured over the entire pressure and temperature profile and is supplied with a detailed calibration sheet.

Specification

  • Pressure Ranges: 0…100 to 0…1000 bar
  • Long-Term Stability: ± 0,25 %FS
  • Material: Steel 1.4435
  • Dimensions: ⌀ 19 mm x 15 mm
  • Temperature Range: -20…100 °C

Technology

• Insulated piezoresistive pressure sensor encapsulated in an oil-filled metal housing • Ideal for mounting with O-ring and support ring
• Typical output signal range of 160 mV/mA

Typical applications

• OEM
• Industry
• Laboratory • Oil and gas • Oceanology
