Keller Series 20

  • NG # 04022-HW-KELLER-044

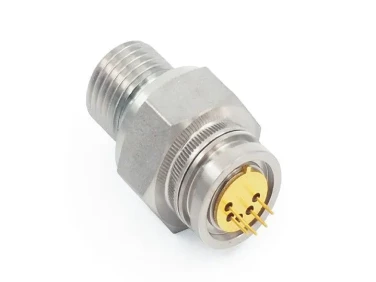

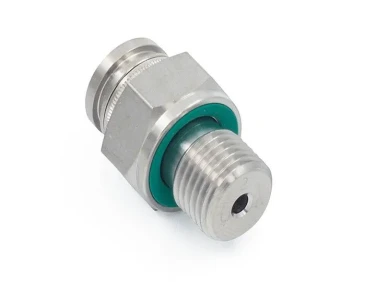

The KELLER Series 20 is an OEM piezoresistive pressure transducer platform featuring a heavy-duty threaded housing construction. Designed for integration into systems where a standalone capsule (like the Series 10L) is not suitable due to high pressure or mounting constraints, the Series 20 combines a metal measuring cell with standard threaded process connections.

Manufactured By :
Keller Druck
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

Series 20 pressure transducers with threaded connections offer high long-term stability and overload resistance, as well as optimized temperature behavior. The compact and robust stainless steel housing, without internal seals, is suitable for various OEM applications. Each pressure transducer is calibrated by pressure and temperature and comes with a detailed calibration sheet.

Specification

Isolation> 100 MΩ @ 500 VDC
Feeding1mA nominal - 3mA maximum
Materials in contact with the fluidAISI 316L
Precision0.5%FE
Temperature range-20...100 °C
Pressure Ranges0...5 bar to 0...600 bar
Bridge resistance @ 25ºC3.5 kΩ ± 20%
Available typesPA/PR/PAA
