NG # 04013-HW-KELLER-035
The Keller Series 9L is a unamplified piezoresistive pressure transducer capsule designed for OEM integration. Unlike complete transmitters with housing and cable glands, the 9L is a core transducer cell meant to be built directly into custom manifolds, valves, specialized instrumentation, or system enclosures.
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing

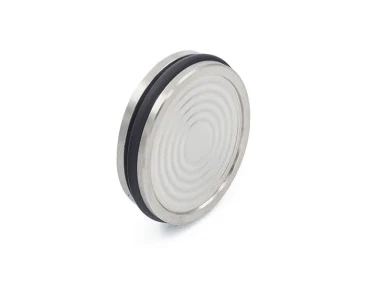

Get A QuoteThe pressure transducers of the 9L series have a compact, robust housing made of stainless steel, giving them outstanding long-term stability for a range of OEM applications. The metal diaphragm is welded on front-flush and gap-free, separating off the piezoresistive pressure sensor, which is made of silicon, from the measuring medium. Every pressure transducer is measured over the entire pressure and temperature profile and is supplied with a detailed calibration sheet.https://img.directindustry.de/images_di/2ai/save-En.gif
| Parameter | Specification Details |
| Pressure Ranges | $0\dots 1\text{ bar}$ up to $0\dots 1000\text{ bar}$ (Absolute or Sealed Gauge) |
| Signal Output | Raw millivolt bridge output ($\sim 100\text{ mV}$ full scale at $1\text{ mA}$ excitation) |
| Excitation / Power | Constant current supply ($1\dots 2\text{ mA}$ typical) or constant voltage ($5\dots 10\text{ V DC}$) |
| Linearity / Hysteresis | $\pm 0.1\,\%\text{FS}$ typical |
| Operating Temperature | $-40\text{ °C}$ to $+125\text{ °C}$ (extended options up to $+150\text{ °C}$) |
| Dimensions | Standard capsule diameter: $\varnothing 15\text{ mm}$ or $\varnothing 19\text{ mm}$ (depending on variant) |
| Housing / Diaphragm Material | Stainless Steel 316L (1.4435) or Hastelloy C-276 |

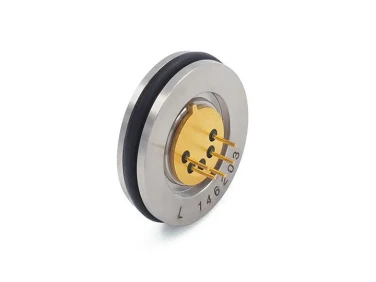

| Electrical Connection | Gold-plated glass feedthrough pins or flexible wire leads |
| Sealing / O-Ring | Integrated Viton O-ring groove for face or radial sealing inside custom housings |
