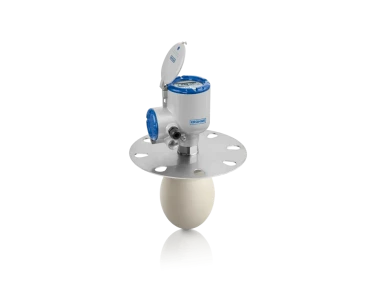

krohne OPTIWAVE 6400 Radar level transmitter

  • NG # 04007-HW-KROHNE-041

The OPTIWAVE 6400 is a 2-wire 24 GHz radar (FMCW) level transmitter for basic applications with solids. This radar is designed for continuous, non-contact level measurement of stones, plastic granulates, coffee beans and other products in solids processing of various industries.

Manufactured By :
KROHNE
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The level transmitter features a Metallic Horn antenna as well as PP and PTFE Drop antennas. The Drop antenna design minimises scaling and is unaffected by the angle of repose. Hence no need for expensive antenna aiming kits or purging systems.

Specification

General information

Product typeLevel transmitter
Product family nameOPTIWAVE
Product positioningFor solids from granulates to rocks
Measurement variablesDistance, Level, Mass, Reflection, Volume
Measurement principleRadar (FMCW)
Level measurement typeContinuous measurement
Contact to measured mediumNo
Interface measurementNo
RedundancyNo
Measured mediaSolids, Bulk solids, Granulates
Measuring range (solids)0…100 m/
0…328 ft
Ambient temperature-40…+80°C/
-40…+176°F
Measuring pointSilo, Stockpile, Conveyor belt, Shaft, Bunker, Crusher

Operating conditions

Process pressure-1…16 barg/
-14.5…232 psig
Process temperature-50…+130°C/
-58…+266°F

Materials

AntennaPolypropylene (PP), Polytetrafluoroethylene (PTFE)
GasketsEthylene propylene diene monomer (EPDM), Fluoroelastomer rubber (FKM/FPM), Kalrez® 6375

Process connections

Flange connectionsEN (1092-1): DN80…200
ASME (B 16.5): 3…8"
JIS (B 2220): 80…200A
Pressure ratingsEN (1092-1): PN40
ASME (B 16.5): Cl 300#
JIS (B 2220): 10k
Thread connectionsMale:
G1, G1½″
1 NPT, 1½ NPT

Approvals/Standards

Certificates/Approvals OthersWHG, CRN / ASME B31.3
Certificates/Approvals ExATEX, cQPSus, IECEx, NEPSI, EAC Ex
Certificates/Approvals SafetySIL 2/3
Ingress protectionIP66/68, NEMA4X/6P
NAMUR complianceNE 107, NE 21, NE 43, NE 53

Communication

Analogue outputs4…20 mA
Digital outputsFOUNDATION™ Fieldbus, HART®, Profibus-PA

Accuracy

Accuracy (solids)±2 mm/
±0.08 in
