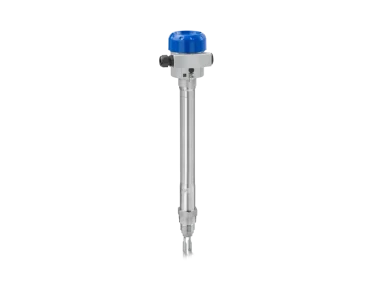

krohne OPTISWITCH 5300 Vibration level switch

  • NG # 03996-HW-KROHNE-030

The OPTISWITCH  5300 is a vibration level switch for heavy duty applications. It is designed for high/low level alarm, overfill protection or pump dry-run detection in processes from cryogenic to +450°C / +842°F.

Manufactured By :
KROHNE
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

 Its pressure range (up to 160 barg / 2321 psig) meets boiler standards covering virtually all saturated steam applications. With its corrosion-resistant tuning fork (Inconel® 718), an optional 2nd process seal (ceramic) and an extensive set of approvals (WHG, NACE, Ship, Ex, Boiler and SIL) it is the ideal device for harsh environments such as refineries or offshore platforms.

Specification

General information

Product typeLevel switch
Product family nameOPTISWITCH
Product positioningFor heavy-duty applications
Product variantsOPTISWITCH 5300 C: Compact housing
Measurement variablesLevel
Measurement principleVibrating
Level measurement typePoint level detection
Contact to measured mediumYes
Interface measurementNo
RedundancyNo
Measured mediaLiquids
Probe length80…3000 mm/
3…118 in
Measuring pointPressurised tank, Open tank, Open channel, Basin

Operating conditions

Process pressure-1…160 barg/
-14.5…2320 psig
Process temperature-196…+450°C/
-320…+842°F

Materials

GasketsKlingersil® C-4400
Wetted partsAustenitic stainless steel (1.4404/316L), Austenitic alloy (2.4610/alloy C4), Austenitic alloy (2.4668/Alloy 718)

Process connections

Flange connectionsEN (1092-1): DN50…250
ASME (B 16.5): 1½…4
Thread connectionsMale:
G1
1 NPT

Approvals/Standards

Certificates/Approvals OthersWHG
Certificates/Approvals ExATEX, IECEx, EAC Ex
Certificates/Approvals MarineGL, LR
Certificates/Approvals SafetySIL 2
Ingress protectionIP66/67, NEMA4/4X/6

Communication

Discrete outputs2-wire (8/16 mA), Relay, Transistor
