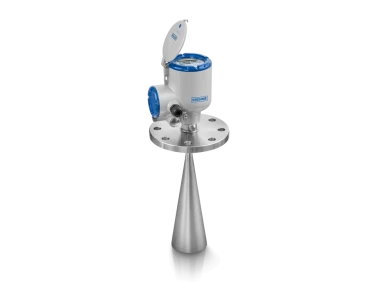

krohne OPTIWAVE 5400 Radar level transmitter

  • NG # 04008-HW-KROHNE-042

The OPTIWAVE 5400 is a 2-wire 24 GHz radar (FMCW) level transmitter for liquids in basic process applications.

Manufactured By :
KROHNE
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

It is particularly designed for continuous, non-contact level measurement in the chemical, petrochemical, power as well as oil and gas industry. It can be equipped with a PP Drop antenna for condensing atmospheres and corrosive media but features also Metallic Horn antennas. Due to its high dynamic range, the 24 GHz radar can measure distances up to 100 m / 328 ft.

Specification

General information

Product typeLevel transmitter
Product family nameOPTIWAVE
Product positioningFor liquids in basic process applications
Measurement variablesDistance, Level, Mass, Reflection, Volume
Measurement principleRadar (FMCW)
Level measurement typeContinuous measurement
Contact to measured mediumNo
Interface measurementNo
RedundancyNo
Measured mediaLiquids, Slurries, Pastes
Measuring range (liquids)0…100 m/
0…328 ft
Ambient temperature-40…+80°C/
-40…+176°F
Measuring pointPressurised tank, Open tank, Stilling well, Open basin

Operating conditions

Process pressure-1…16 barg/
-14.5…232 psig
Process temperature-50…+130°C/
-58…+266°F

Materials

AntennaPolypropylene (PP)
GasketsEthylene propylene diene monomer (EPDM), Fluoroelastomer rubber (FKM/FPM), Kalrez® 6375

Process connections

Flange connectionsEN (1092-1): DN40…200
ASME (B 16.5): 1½…8"
JIS (B 2220): 40…200A
Pressure ratingsEN (1092-1): PN40
ASME (B 16.5): Cl 300#
JIS (B 2220): 10k
Thread connectionsMale:
G1, G1½
1 NPT, 1½ NPT

Approvals/Standards

Certificates/Approvals OthersNACE, WHG, CRN / ASME B31.3
Certificates/Approvals ExATEX, cQPSus, IECEx, NEPSI, EAC Ex, KCs
Certificates/Approvals SafetySIL 2/3
Ingress protectionIP66/68, NEMA4X/6P
NAMUR complianceNE 107, NE 21, NE 43, NE 53

Communication

Analogue outputs4…20 mA
Digital outputsFOUNDATION™ Fieldbus, HART®, Profibus-PA

Accuracy

Accuracy (liquids)±2 mm/
±0.08 in
