NG # 02016-HW-Omega-003
MF # DPG210-100G
SKU # DPG210-100G

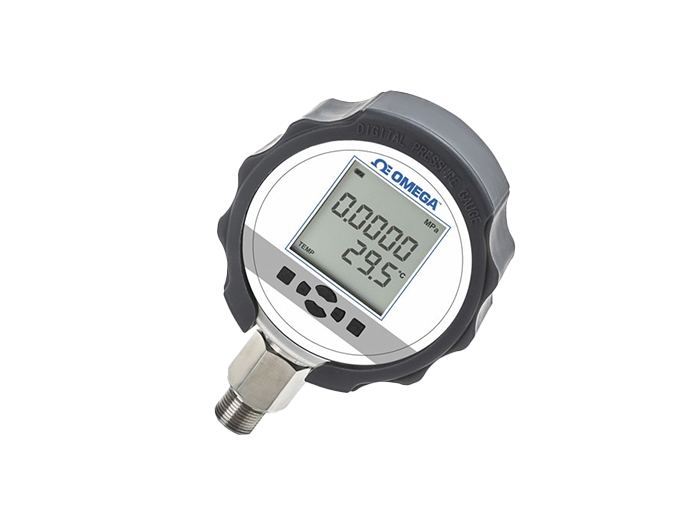

Digital pressure Gauge with 5-digit display, main and auxiliary screen design · AA battery power, services more than 3600 hours
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteThe DPG210 features a large 55x55 mm (2.1'x2.1') LCD screen, with 5 digit 17mm primary and 13.5mm auxiliary lines. It displays both the current pressure as well as the local temperature, maximum, or minimum pressures from the reference data. Powerful functions: include 10 common pressure units and flexible power supplied by either three AA batteries or via USB connection.
An ultra-low power consumption design allows the DPG210 to run more than 3600 hours when powered by three standard alkaline AA batteries. The DPG210 is an all digital design combining a high precision ADC and high-speed microprocessor. This provides a product that is high precision, with good stability and great shock resistance.
5-point NIST calibration certificate is available and can be added to each unit for an additional cost of $150 by contacting sales. Add “-CAL-3” to the end of the part number for “NIST” option.
| Operating Temperature | -10 to 50°C (14 to 120°F) |
| Storage Temperature | -20 to 60°C (-4 to 140°F) |
| Battery Life | 3600 hours |
| Power | Battery (Three AA Batteries) or USB-power |
| Case Material | 304SS |
| Compensation Temperature | 0 ~40°C (32 to 104°F) |
| Display Type | LCD, 5 digits |
| Over pressure Limits | 3X Rated Pressure from 0 to 100 psi, 2X Rated Pressure from 200 to 5000 psi. |
| Process Connection/Material | ¼” NPT (others consult Omega Sales), 304SS |
| Range | -0.1 to 35 MPs (-14.50 to 5000 psi) |
| Temperature Accuracy | ≤ 0.5C |
| Stability | ±0.2%FS/year |
| Weight | 0.5Kg |
| Burst Pressure | 4X Rated Pressure from 0 to 100 psi, 3X Rated Pressure from 200 to 5000 ps |
| Backlight Color | White |
| Case Protection | IP65 |
| Dial Size | 105mm |
| Electric Protection | EN61326 |
| Pressure Accuracy | ± 0.05% FS |
| Process Media | Gas, water, oil |
| Sampling Rate | 1-10 times/second |
