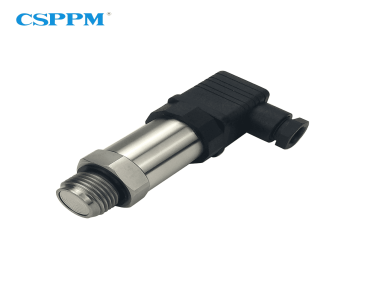

PPM-T127H Flush Membrane Pressure Transmitter

  • NG # 04309-HW-CSPPM-028

The PPM-T127H Flush Membrane Pressure Transmitter is a high-performance industrial sensor designed for accurate pressure measurement of viscous, slurry, and easily clogged media. Built with a stainless steel isolation diaphragm and advanced compensation circuitry, it ensures stable, reliable operation in demanding environments, offering excellent anti-blocking, anti-scaling, and anti-interference capabilities.

Manufactured By :
csppm sensor
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The PPM-T127H Flush Membrane Pressure Transmitter is engineered to deliver precise and stable pressure measurement in applications where traditional sensors may fail due to clogging or buildup. Its flush diaphragm design eliminates dead zones, making it particularly effective for thick fluids, solid-liquid mixtures, and media prone to crystallization or scaling.

Constructed with high-grade stainless steel materials such as 316L and 17-4PH, the device ensures durability and resistance against harsh industrial conditions. The use of laser welding technology provides a seamless and robust structure, enhancing reliability and long-term performance.

This transmitter incorporates an intelligent compensation circuit that improves measurement accuracy and minimizes errors caused by environmental factors. Its versatility allows it to be used across various industries, including chemical processing, food and beverage production, environmental protection systems, and slurry handling applications. The product is especially suitable for processes involving emulsifiers, paint systems, and pulp-based materials where clogging resistance is critical.

Specification

  • Measured Medium: Non-corrosive gases and liquids compatible with 17-4PH & 316L stainless steel
  • Pressure Type: Gauge pressure or customized options
  • Pressure Range: 0–10 kPa up to 40 MPa
  • Output Signal: 4–20 mA, 1–5 VDC, 0–5 VDC, 0–10 VDC
  • Power Supply: 24 VDC (12–32 VDC range)
  • Process Connection: M20 × 1.5, G1/2
  • Electrical Connection: DIN43650 connector or direct cable output
  • Accuracy: ±0.2% FS or ±0.5% FS (optional)
  • Non-linearity: 0.05% FS
  • Repeatability: 0.05% FS
  • Long-term Stability: 0.2% FS/year (typical)
  • Working Medium Temperature: -20°C to +75°C
  • Ambient Temperature: -40°C to +85°C (up to 250°C customized)
