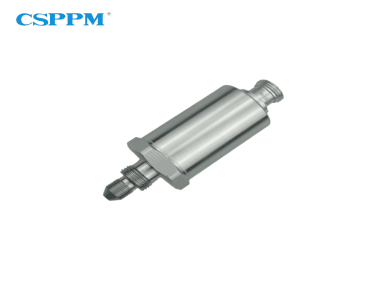

PPM-T336A Sputtered Thin Film Pressure Transmitters

  • NG # 04302-HW-CSPPM-021

The PPM-T336A Thin Film Pressure Transmitter is a high-precision industrial pressure sensor designed using sputtered thin film or SOI silicon technology. It delivers stable and accurate pressure measurement in harsh environments such as hydraulic systems, engines, turbines, and industrial automation applications. The device features a fully welded stainless steel structure with excellent resistance to vibration, shock, and extreme temperatures.

Manufactured By :
csppm sensor
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The PPM-T336A pressure transmitter is engineered for demanding industrial applications where reliability and long-term stability are critical. It uses advanced sputtered thin film sensing technology combined with a temperature and pressure compensation circuit to ensure precise signal conversion and consistent performance.

Its robust stainless steel construction makes it suitable for both liquid and gas pressure measurement in aggressive or high-pressure environments. With excellent electromagnetic compatibility, low power consumption, and no hysteresis characteristics, the sensor provides dependable operation even under severe mechanical stress and temperature fluctuations.

This model is widely used in sectors such as automotive systems, diesel engines, power generation units, turbines, and hydraulic control systems where accurate pressure monitoring is essential for safety and efficiency.

Specification

  • Model: PPM-T336A
  • Measurement Medium: Liquid, Gas
  • Pressure Type: Gauge Pressure
  • Pressure Range: 0 ~ 1.5 MPa up to 60 MPa (customizable ranges available)
  • Power Supply: 8–32 VDC
  • Output Signal:
    • Zero: 0.5 ± 0.025 VDC
    • Full scale: 5 ± 0.025 VDC
  • Accuracy: ±0.5% FS (over full temperature range)
  • Repeatability: 0.15% FS
  • Non-linearity: ≤0.3% FS
  • Long-term Stability: 0.15% FS per year
  • Operating Temperature: -43°C to +125°C
  • Wetted Material: 316L Stainless Steel
  • Electrical Connection: Aviation connector type
  • Process Connection: M12×1 / M14×1.5 (custom options available)
  • Housing: Fully welded stainless steel structure
  • Technology: Sputtered thin film / SOI silicon sensor
