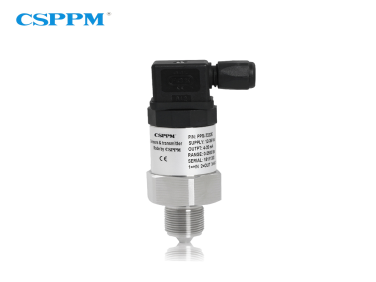

PPM-T232E 1500MPa Ultra High Pressure Pressure Transmitter

  • NG # 04297-HW-CSPPM-016

The PPM-T232E is an ultra-high pressure transmitter designed for extreme industrial environments, capable of measuring pressures up to 1500 MPa. It is built with a stainless-steel welded structure and advanced temperature compensation technology, ensuring high accuracy, durability, and long-term stability in demanding applications such as hydraulic systems, water jet cutting, and high-pressure industrial machinery.

Manufactured By :
csppm sensor
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The PPM-T232E Ultra High Pressure Pressure Transmitter is engineered for precise pressure measurement under extremely high-pressure conditions. It is manufactured using rare metal alloy materials and a fully welded stainless-steel housing, making it highly resistant to mechanical stress and harsh environments.

The device integrates laser temperature compensation and advanced digital signal processing circuitry, which enhances measurement stability and reduces long-term drift. With a wide operating temperature range and strong overload protection, the transmitter is suitable for continuous industrial operation where reliability is critical.

This model is widely used in industries such as metallurgy, petrochemical processing, high-pressure water jet systems, hydraulic presses, and food sterilization equipment, where accurate ultra-high pressure monitoring is required.

Specification

  • Model: PPM-T232E
  • Pressure Range: 150 MPa to 1500 MPa (multiple optional ranges available)
  • Overload Capacity: 120% FS
  • Destruction Pressure: 200% FS or up to 1700 MPa (whichever is lower)
  • Accuracy: ±0.25% FS / ±0.5% FS / ±1.0% FS (optional)
  • Long-term Stability: ≤ ±0.5% FS per year
  • Operating Temperature: -40°C to +85°C (optional up to 125°C or 300°C)
  • Compensation Temperature: -40°C to +80°C
  • Output Signals: 4–20 mA, 0–5 VDC, 0–10 VDC, 0–20 mV options
  • Power Supply: 12–36 VDC (transmitter version)
  • Ingress Protection: IP65 / IP67
  • Pressure Interface: M20×1.5, M16×1.5, 9/16-18 UNF, custom options available
