Rosemount 0085 Pipe Clamp Sensor

  • NG # 04207-HW-EMR-043

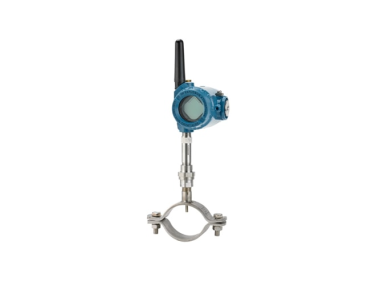

The Rosemount 0085 pipe clamp sensor has a non-intrusive design for fast and easy temperature measurement in piping applications. The platinum RTD temperature sensors feature silver or nickel tip material. Integrated temperature assemblies provide time and cost savings. The direct mount assembly has Rosemount 648 Wireless with Rosemount X-well technology to provide accurate process temperature without requiring a thermowell or process penetration.

Manufactured By :
EMERSON
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The Rosemount pipe clamp platinum RTD Sensors are highly linear and have a stable resistance versus temperature relationship. They are primarily used in industrial environments where high accuracy, durability, and long-term stability are required, and are designed to meet the most critical parameters of international standards: DIN EN 60751/IEC 751 1983 incorporating Amendments 1 and 2.

Specification

  • Temperature range:
    • -58 to 572°F (-50 to 300°C) silver tip
    • -328 to 572 °F (-200 to 300°C) nickel tip
  • .5 to 48in (22 to 1219mm) pipe sizes
  • X-well technology
  • Single or dual element sensor
    • Class A optional
  • Assemble to transmitter option
  • IP68 and NEMA 4X protection
  • Spring loaded adapter option
