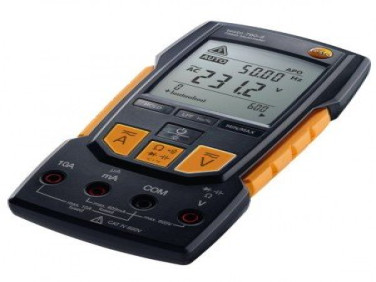

Testo 760-2 Digital Multimeter with Capacitance, TRMS, LPF, Auto Setup, Duty Cycle & Temperature

  • NG # 01593-HW-TESTO-041

  • MF # 0590 7602

 The Testo 760 Digital Multimeter detects the lead connection and prevents switching from V to A or A to V if leads are not in proper socket.

Manufactured By :
Testo
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The Testo 760-2 includes TRMS, duty cycle, low pass filter, and temperature measuring. Testo's exclusive auto-test setup enables the user to simply turn on the unit, connect the leads, and begin measuring.

Specification

Specification

Temperature-Type K TC
Measuring Range-4.0° to 932.0°F/-20 to +500°C
Accuracy±33.8°F(32.0° to 212.0°F)/±1°C(0 to +100°C)
Resolution0.1°F
DC Voltage
Resolution600mV/0.1mV
6.000V/1mV
60.00V/10mV
600.0V/100mV
Accuracy±(0.8% of mv + 3 Digit)
AC Voltage
Resolution600mV/0.1mV
6.000V/1mV
60.00V/10mV
600.0V/100mV
Accuracy±(0.8% of mv + 3 Digit)
DC Current
Resolution600µA/0.1µA
6000µA/1µA
60.00mA/10µA
600.0mA/100µA
6A/1mA
10A/10mA
Accuracy±(1.5% of mv + 5 Digit)
AC Current
Resolution600µA/0.1µA
6000µA/1µA
60.00mA/10µA
600.0mA/100µA
6A/1mA
10A/10mA
Accuracy±(1.5% of mv + 5 Digit)
Resistance
Resolution60.00Ohm/0.01Ohm
600.0Ohm/0.1Ohm
6.000kOhm/1Ohm
60.00kOhm/10Ohm
600.0kOhm/100Ohm
6.000MOhm/1kOhm
60.00MOhm/10kOhm
Accuracy±(1.5% of mv + 3 Digit)
Capacitance
Resolution6.000nF/0.001nF
60.00nF/0.01nF
600.0nF/0.1nF
6.000µF/0.001µF
60.00µF/0.01µF
600.0µF/0.1µF
6.000mF/1µF
30.00mF/10µF
Accuracy±(0.5% of mv + 3 Digit)
Frequency
Resolution600.0Hz/0.1Hz
6.000kHz/1Hz
60.00kHz/10Hz
600.0kHz/100Hz
6.000MHz/1kHz
30.00MHz/10 kHz
Accuracy±(0.1% of mv + 1 Digit)
General Technical Data
Protection classIP64
Storage Temperature5° to 140°F/-15 to +60°C
Overvoltage CategoryCAT III 1000V; CAT IV 600V
Operating Temperature14° to 122°F/-10 to +50°C
