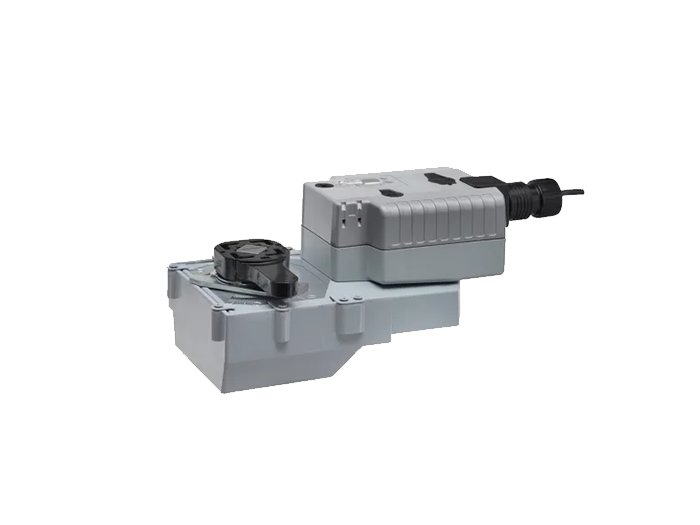

Honeywell VR And VH Series Butterfly Valve Replacement Actuator

  • NG # 00980-HW-HNWEL-100

  • SKU # 00980-HW-HNWEL-100

The VH Series High Performance Butterfly Valve features a double offset (or, double eccentric) shaft design to minimize seat abrasion and lower torque. This double offset design allows the disc to lift off and “cam” away.

Manufactured By :
Honeywell
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The VH Series High Performance Butterfly Valve features a double offset (or, double eccentric) shaft design to minimize seat abrasion and lower torque. This double offset design allows the disc to lift off and “cam” away from the seat as it rotates open. The VH series valve always rotates clockwise to close (when viewed from above) and counter clockwise to open. The valve body has an Over travel Stop which prevents the disc from over rotating into the wrong quadrant. This stop is not to be used as a disc position stop; if the disc contacts the Over travel Stop, this means it has rotated beyond the seat.

Specification

Specification

  • Bi-directional flow
  • 304 stainless steel disks
  • Ductile iron valve body for increased strength and durability
  • Stainless steel valve stem
  • EPDM resilient valve seat doubles as flange gasket
  • Bubble-tight seat leakage at rated close-off
  • Close-off rating of 200 psid in sizes 2 to 12in
  • Close-off rating of 150 psid in sizes 14 to 24in
  • ISO 5211 actuator mounting flange
  • Available with factory-installed electric actuation interfaces in 2-position,
  • Floating (“tri-state”), or Modulating (2 to 10V DC) Control
  • Manual override on all models
  • Fail-safe actuators available on valves up to 12in
  • For use with hot, chilled or condensing water with up to 60% glycol in HVAC systems
