Allen Bradley PanelView 800 Touch Screen HMI - 10 in, TFT LCD Display, 800 x 600pixels

  • NG # 02667-HW-ALBR-006

  • MF # 2711R-T10T

Manufactured By :
Allen Bradley
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

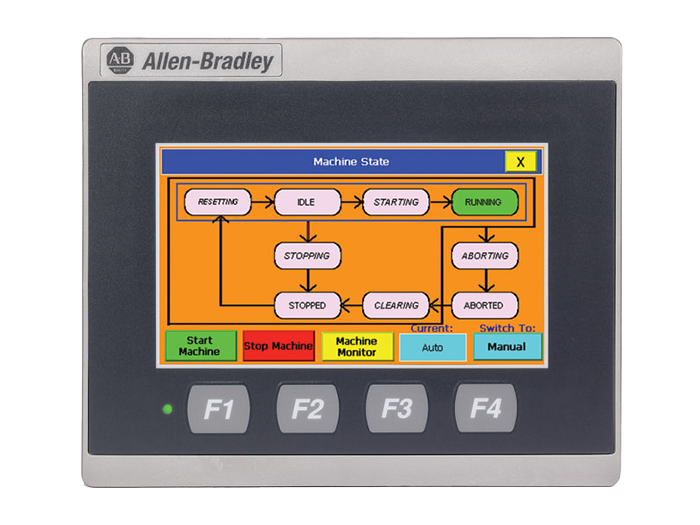

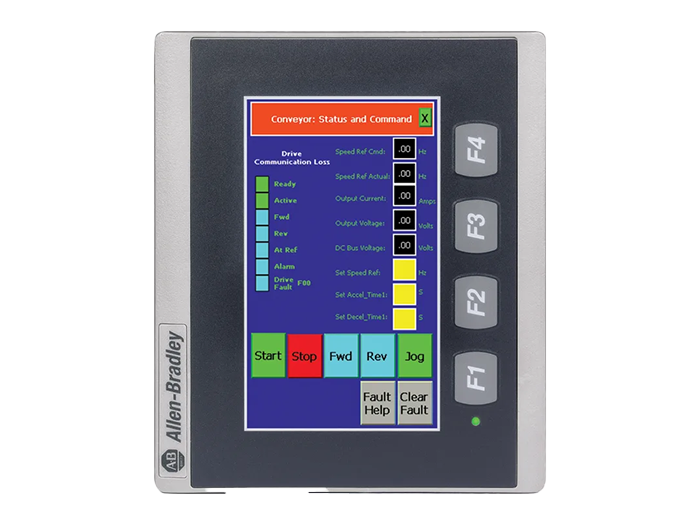

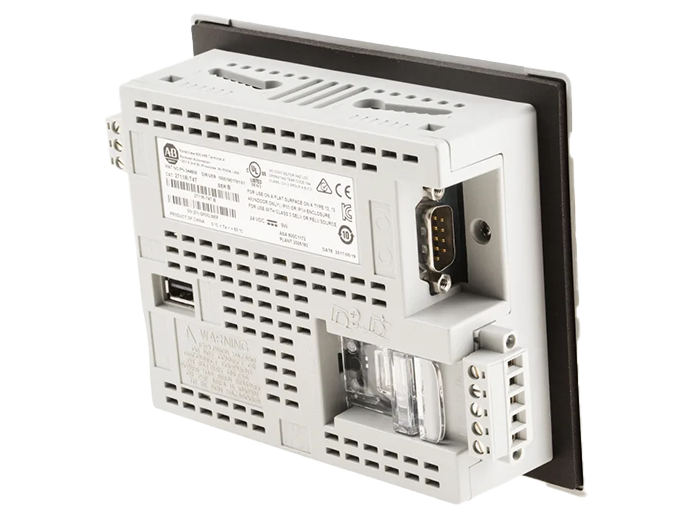

Allen Bradley PanelView 800 Touchscreen HMI, 10in Display, TFT LCD Display - 2711R-T10T


When you need a touchscreen input option for your workplace, look to the Allen Bradley PanelView 800 from Rockwell Automation. It has an 800Hz central processing unit (CPU), so it can process input data quickly. A high-resolution 800 x 600 pixel backlit LED (light-emitting diode) display offers a clear and crisp picture. As it supports 65,000 colours, you can be sure detail won't be lost. Depending on your needs, you can use this versatile device in either landscape or portrait mode.


Features & Benefits


• Multiple languages for use in various countries
• 10-inch screen size for comfortable viewing, inputting and handling
• Serial data transmission via Ethernet, USB (universal serial bus), RS232, RS422 and RS485 for connecting to various applications
• Upload and download parameter settings with a single operation for fast configuration


Standards and Certifications


• UL (Underwriters' Laboratories)
• CE (Conformitè Europëenne)
• RCM (Regulatory Compliance Mark)
• KC (Korea Certification)


What types of industry would use this touchscreen human-machine interface (HMI)?


This touchscreen HMI is well suited to factories operating material handling, air handling and stretch-wrap machines, where users need to interact with equipment and input information into an application.

Specification

Product RangePanelView 800
Display TypeTFT LCD
Manufacturer Part No.2711R-T10T
Display Resolution800 x 600pixels
Number of Ports2
Port TypeEthernet, USB
Processor Speed800MHz
Onboard Memory256 MB
Display Size10 in
BacklightingYes
IP RatingIP65
Supply Voltage24 V dc
Length287mm
Maximum Operating Temperature+50°C
Width225mm
Display ColourColour
Dimensions287 x 225 x 55 mm
Minimum Operating Temperature0°C
InterfaceEthernet
Depth55mm
