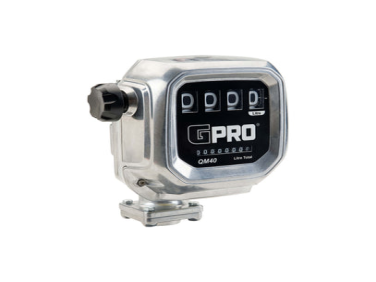

Flomec QM40 Mechanical Flow Meter

  • NG # 04113-HW-FLO-014

The GPRO QM40 Series Fuel meter is a strong, accurate, and reliable oval gear flow meter capable of handling the toughest conditions. Frictionless mag drive means no seals and no internal leaks.

Manufactured By :
Flomec GPI
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The GPRO QM40 Mechanical Fuel Meter provides precision fuel measurements for more accurate readings for fleet operations, heavy equipment, and agricultural applications. It features a magnetic drive mechanism that is nearly frictionless; less friction results in more flow making the QM40 capable of handling flow rates up to 150 L/min. The QM40 easily attaches to the new modular fuel transfer pumps with the Quick-Fit Modular feature and simple four-bolt connections.

Specification

  • Oval Gear Technology provides 20x more precision at 75 LPM and 4x higher accuracy (1/2%) overall when compared to nutating disc meters.
  • No calibration required. Factory set at +1% accuracy with as low as +0.5% achievable in the field. Accurate at as low as 8 LPM compared to 24 LPM with nutating disc mechanical diesel fuel flow meters.
  • Frictionless Mag Drive means no leaks and no seals internally improving the lifespan and accuracy of your diesel meter.
  • Larger Capacity allows for a flow range of 8 - 150 LPM means a 33% increase in capacity compared to 120 LPM for nutating disc mechanical diesel fuel flow meters.
  • Rotatable Display Mount lets you mount the QM40 in a range of positions allowing for flexibility in installation.
  • Low Pressure Drop makes it the ideal flow meter for gravity fed applications with 7 PSI at 150 LPM and only 1 PSI at 40LPM
  • Technology: Oval Gear
  • Flow Range: 8 - 150 L/min
  • Accuracy: ± 0.5%
  • Repeatability: ± 0.3%
  • Pressure Rating: 3.45 bar (50 psi)
  • Operating Temperature Range: -40° C - 52° C
