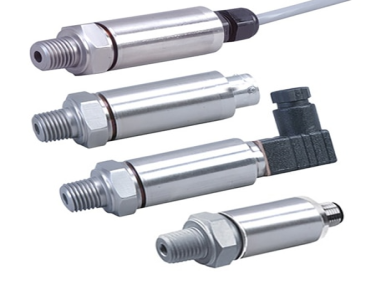

Get A QuoteThis is a high-precision gauge pressure sensor designed for demanding industrial applications. It provides accurate pressure measurements up to 5000 psi with a fast response time of less than 1 ms and excellent stability over time (±0.25% 1-year). The sensor is ruggedly built with a 316 stainless steel enclosure rated IP65, making it suitable for harsh environments.
| Accuracy | ± 0.25 % |
| Accuracy Class | 0.1% to 0.25% |
| Accuracy Detail | ± 0.25% BSL, max (Combined Linearity, Hysteresis and Repeatability) |
| Additional Features 1 | None |
| Bandwidth | DC to 1 kHz |
| Burst Pressure | 4x Full Scale |
| Burst Pressure Note | -15 to 50 psig and 0 to 1000 psia: 4 times rated pressure or 25 psi whichever is greater, 100 to 10,000 psig: 5 times rated pressure |
| Compliance | RoHS 2 |
| Electrical Connection | DIN 43650 C (solenoid valve) |
| Electrical Output | 4 to 20 mA |
| Enclosure Material | 316 Stainless Steel |
| Enclosure Ratings | IP65 |
| Insulation Resistance | 1 MΩ @ 25 Vdc |
| Measurement Pressure Type | Gauge |
| Measurement Pressure, Max | 5000 psi |
| Measurement Pressure, Min | 0 psi |
| Operating Temperature, Max | 85 °C |
| Operating Temperature, Min | -40 °C |
| Output Signal | Current |
| Pressure Cycles | 10 million, minimum |
| Pressure Note | Pressure Overload: -15 to 50 psig and 0 to 1000 psia: 3 times rated pressure or 20 psi whichever is greater, 100 to 10,000 psig: 2 times rated pressure |
| Process Connection Size | 1/4 in |
| Process Connection Type | NPT Male |
| Response Time | <1 ms |
| Shock | 50 g, 11 ms half-sine |
| Shunt Calibration Value | In vertical direction with fitting down, compound ranges are calibrated for positive pressure output only |
| Stability | ± 0.25% |
| Stability Note | 1-Year Stability: <0.25% FS |
| Supply Voltage | 9 to 30 Vdc |
| Vibration | ± 20 g |
| Weight | 154 g |
