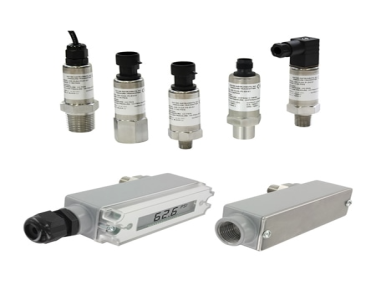

Get A QuoteThis device is a high-accuracy industrial pressure transmitter designed for reliable measurement of gauge pressure in various liquids and gases. It offers exceptional performance with multiple accuracy options (as low as ±0.20% RSS) and is built with robust 316L stainless steel wetted parts for superior corrosion resistance.
The transmitter supports a 4–20 mA output with low power consumption (38 mA) and operates across a wide supply voltage range, making it compatible with diverse industrial systems. It withstands harsh conditions with IP66 / NEMA Type 4X enclosure ratings and a broad operating temperature range of 0 to 200 °F.
With a fast 300 ms response time, high proof pressure tolerance, and compatibility with various media—including water, oils, alcohols, and inert gases—it is ideal for process control, automation, and fluid monitoring applications. Its mounting is not position sensitive, simplifying installation in tight or complex setups.
| Specification | Value |
|---|---|
| Accuracy Detail | 626: 0.25% FS; 626: 0.20% RSS; 628: 1.0% FS; 628: 0.5% RSS; 626 Absolute Ranges: 0.5% FS; 626 Absolute Ranges: 0.30% RSS (Includes linearity, hysteresis, and repeatability) |
| Burst Pressure | 500 psi Maximum |
| Compensated Temperature, Max | 175 °F |
| Compensated Temperature, Min | 0 °F |
| Compliance | CE |
| Compliance Note | CE, Optional: NSF/ANSI 61/372, ANSI/UL 218, ANSI/UL 508, NEPA 20 |
| Enclosure Ratings | IP66, NEMA Type 4X |
| Loop Resistance | 0 to 1000 Ω max |
| Materials, Wetted | 316L Stainless Steel |
| Media Compatibility | Alcohols, Argon, Compatible Gases, Compatible Liquids, Nitrogen, Oils, Water |
| Mounting Orientation | Not Position Sensitive |
| Operating Temperature, Max | 200 °F |
| Operating Temperature, Min | 0 °F |
| Output Detail | 4 to 20 mA |
| Power Consumption | 38 mA |
| Measurement Pressure, Min | 0 psi |
| Measurement Pressure Type | Gauge |
| Process Connection Size | 1/4 in |
| Process Connection Type | NPT Male |
| Proof Pressure | Up to 200 psi |
| Response Time | 300 ms |
| Supply Power Note | 10 to 30 VDC (for 4 to 20 mA, 0 to 5, 1 to 5, 1 to 6 VDC outputs); 13 to 30 VDC (for 0 to 10, 2 to 10 VDC outputs); 5 VDC ± 0.5 VDC (for 0.5 to 4.5 VDC ratio to metric output); 10 to 35 VDC (for 4 to 20 mA with CB option); 13 to 35 VDC or isolated 16 to 33 VAC (for selectable output with CB option) |
| Supply Power Type | DC |
| Supply Voltage | 10 to 35 VDC |
| Thermal Effects | ± 0.02% FS/°F (includes zero and span) |
| Weight | 283 g |
