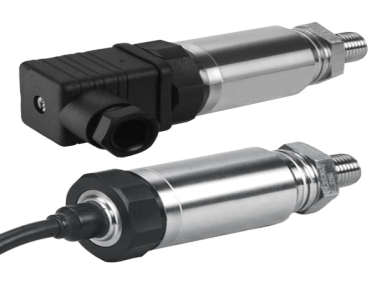

Get A QuoteThis high-precision gauge pressure transmitter delivers exceptional accuracy (±0.08% BSL) and long-term stability (±0.1%), making it ideal for demanding industrial applications such as chemical processing, energy generation, fuel and gas handling, hydraulics, pneumatics, and manufacturing systems.
Designed for durability, it operates from -40 °C to 75 °C and withstands up to 4× full-scale burst pressure and proof pressures up to 1000 psi. Its robust 316L stainless steel wetted parts ensure compatibility with a wide range of process media, while the oil-filled piezoresistive MEMS sensing element provides fast response (<1 ms) and excellent repeatability.
The transmitter features a 4–20 mA output signal, DIN 43650 C electrical connection, and an adjustable zero and span range (±10% span) for on-site calibration. It offers high shock (50 g) and vibration resistance (±20 g), supports over 1 million pressure cycles, and is RoHS 2 compliant.
| Accuracy | ± 0.08 % |
| Accuracy Class | < 0.1% |
| Accuracy Detail | ± 0.08% BSL maximum (other accuracies available) For conduit (C and CW) zero and span set ± 0.5% full scale typical ± 1% maximum or set ± 1% full scale typical ± 2% maximum ranges 2.5 psi and below |
| Additional Features 1 | None |
| Applications | Chemicals, Energy Generation and Distribution, Fuel and Gas, Hydraulic and Pneumatic Systems, Industrial and Manufacturing |
| Bandwidth | DC to 1 kHz |
| Burst Pressure | 4x Full Scale |
| Cable Length | 10 ft |
| Compensated Temperature, Max | 75 °C |
| Compensated Temperature, Min | -29 °C |
| Compliance | RoHS 2 |
| Electrical Connection | DIN 43650 C (solenoid valve) |
| Electrical Output | 4 to 20 mA |
| Insulation Resistance | 100 MΩ @ 50 Vdc |
| Materials, Wetted | 316L Stainless Steel |
| Measurement Pressure Type | Gauge |
| Measurement Pressure, Max | 50 psi |
| Measurement Pressure, Min | 0 psi |
| Operating Temperature, Max | 75 °C |
| Operating Temperature, Min | -40 °C |
| Output Signal | Current |
| Pressure Cycles | 1 million, minimum |
| Process Connection Size | 1/4 in |
| Process Connection Type | NPT Male |
| Proof Pressure | Up to 1000 psi |
| Response Time | <1 ms |
| Sensing Element | Oil filled Piezoresistive MEMS |
| Shock | 50 g, 11 ms half-sine |
| Span Setting Adjustable Range | ± 10% span |
| Stability | ± 0.1% |
| Supply Voltage | 10 to 28 Vdc |
| Thermal Effect on Span error, Max | ± 0.5% span |
| Thermal Effect on Zero error, Max | ± 0.5% span, ± 0.5% span |
| Trim Pot Access | Removeable Electrical Connection Cover |
| Vibration | ± 20 g |
| Weight | 315 g |
| Zero Setting Adjustable Range | ± 10% span |
