LP25 High Level Switch

  • NG # 003131-HW-IPC-031

LP25 High Level Switch provides reliable liquid level detection for tanks and storage vessels. Designed with a wide switching range, it adapts to different tank sizes and applications. Featuring easy installation, 3A switching current, and normally open or normally closed operation, it offers flexible and dependable high-level monitoring.



Manufactured By :
Icon Process Controls
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The LP25 High Level Switch is designed for accurate and dependable high-level liquid detection in a wide range of tank applications. Its wide switching range allows it to function effectively in both small vessels and large storage tanks. With simple installation and 3A switching current capability, it supports normally open or normally closed configurations. The LP25 offers a practical, flexible solution for liquid level monitoring, ensuring efficient tank management and system safety.

Specification

Specification

Operating Temperature: 32 °F – 140 °F (0 °C – 60 °C)

Switch Type: Micro switch or Reed switch

Float Material: PP (Polypropylene)

Contact Mode: NO / NC / SPDT

Contact Rating (Micro Switch): 10 A / 250 VAC

Contact Rating (Reed Switch): 250 V AC, 0.28 A (NO)

DC Contact Rating: 50 VDC, 1 A (NO)

Specific Gravity: 0.6 – 0.8

Maximum Pressure: 28.5 Psi – 64 Psi

Cable Type: PVC cable

Cable Length: 3 ft (customizable)

Wire Voltage: Up to 600 VAC

Actuation Angle: 28° ±2°

Upward Actuation: 18° ±4°

Downward Actuation: 3° ±3°

Contact Resistance: Max 100 mΩ

Protection Rating: IP68

Other Icon Process Controls Products

TIB Insertion Paddle Wheel Flow Meter Sensor
Icon Process Controls Industrial Tools & Accessories 003101-HW-IPC-001

CFL Float Liquid Level Sensor
Icon Process Controls Industrial Tools & Accessories 003126-HW-IPC-026

TIP Insertion Paddle Wheel Flow Meter Sensor
Icon Process Controls Industrial Tools & Accessories 003102-HW-IPC-002

TIW Insertion Paddle Wheel Flow Meter Sensor
Icon Process Controls Industrial Tools & Accessories 003104-HW-IPC-004

TIR Insertion Paddle Wheel Flow Meter Sensor
Icon Process Controls Industrial Tools & Accessories 003105-HW-IPC-005

TKP In-Line Paddle Wheel Flow Meter Sensor
Icon Process Controls Industrial Tools & Accessories 003109-HW-IPC-009

PLF Liquid Level Float Switch
Icon Process Controls Industrial Tools & Accessories 003127-HW-IPC-027

TKB In-Line Paddle Wheel Flow Meter Sensor
Icon Process Controls Industrial Tools & Accessories 003107-HW-IPC-007

TKW In-Line Paddle Wheel Flow Meter
Icon Process Controls Industrial Tools & Accessories 003111-HW-IPC-011

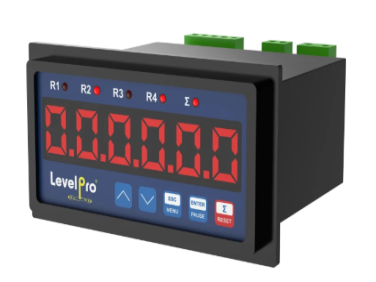

TVF-450 Industrial Flow Batching Controller
Icon Process Controls Industrial Tools & Accessories 003114-HW-IPC-014

ProScan® 8002 Radar Liquid Level Sensor Transmitter
Icon Process Controls Industrial Tools & Accessories 003121-HW-IPC-021

ProScan® 8000 Radar Liquid Level Sensor Transmitter
Icon Process Controls Industrial Tools & Accessories 003122-HW-IPC-022

TCB Series Paddle Wheel Flow Meter Sensor
Icon Process Controls Industrial Tools & Accessories 003112-HW-IPC-012

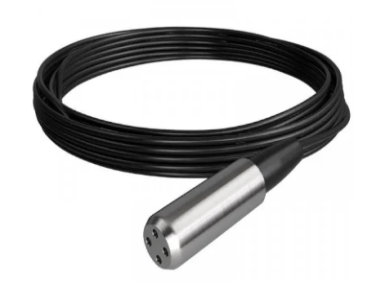

300S Series Submersible Level Sensor Transmitter
Icon Process Controls Industrial Tools & Accessories 003117-HW-IPC-017

TIF Insertion Paddle Wheel Flow Meter Sensor
Icon Process Controls Industrial Tools & Accessories 003106-HW-IPC-006

TFS Series – Level Switch
Icon Process Controls Industrial Tools & Accessories 003130-HW-IPC-030

ViewSonic Ultrasonic Level Sensor Transmitter
Icon Process Controls Industrial Tools & Accessories 003125-HW-IPC-025

TIM Insertion Paddle Wheel Flow Meter Sensor
Icon Process Controls Industrial Tools & Accessories 003103-HW-IPC-003

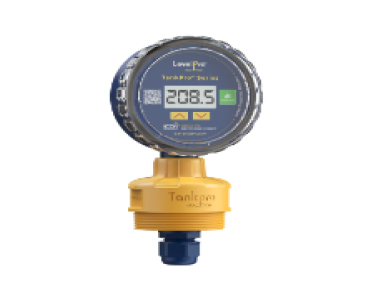

TankPro® Continuous Level Sensor Transmitter
