NG # 03305-HW-MAXO-014

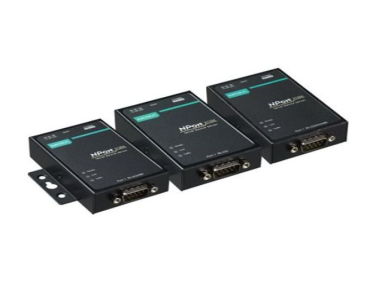

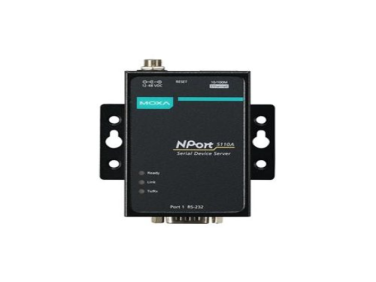

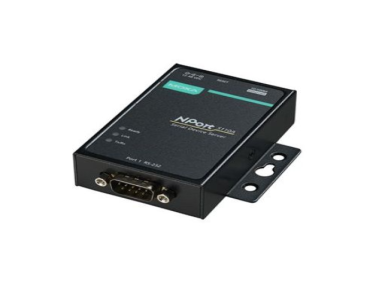

The MOXA NPort 5150A Series Serial Device Server are a robust and reliable solution for enhancing industrial communication. With features like seamless serial-to-Ethernet conversion, redundant power inputs, easy configuration, and secure data transmission, these device servers provide exceptional performance in various applications. Whether for factory automation, transportation systems, power and utilities, or building automation, the MOXA NPort 5150A Series ensures reliable and efficient data communication.
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteSupports RS-232/422/485 interfaces, ensuring compatibility with a wide range of serial devices.
Easy setup and management through a user-friendly web interface.
Ensures continuous operation with dual power inputs.
Reliable performance in temperatures ranging from -40 to 75°C.
Supports SSL and HTTPS for encrypted communication.
In factory automation, reliable communication between various devices is crucial for efficient operation. The MOXA NPort 5150A Series device servers enable the integration of serial devices with Ethernet networks, ensuring seamless data exchange and centralized control.
For transportation systems, such as railways and highways, robust data communication is essential for smooth operation. The device servers provide reliable serial-to-Ethernet conversion, facilitating efficient communication between control systems and remote devices.
In power and utility applications, accurate and reliable data transmission is vital for monitoring and control. The MOXA NPort 5150A Series enhances communication reliability, contributing to the efficient management of power distribution and utilities.
In building automation, integrating various systems such as HVAC, lighting, and security is key to efficient management. The device servers allow for the integration of serial devices with IP-based networks, enhancing the automation and control of building systems.
| Category | Specifications |
|---|---|
| Ethernet Interface | |
| Ports | 10/100BaseT(X) Ports (RJ45 connector), 1 |
| Protection | Magnetic Isolation Protection, 1.5 kV (built-in) |
| Ethernet Software Features | |
| Configuration Options | Serial Console |
| Management | DHCP Client, ARP, BOOTP, DNS, HTTP, HTTPS, ICMP, IPv4, LLDP, SMTP, SNMPv1/v2c, TCP/IP, Telnet, UDP, Filter, IGMP v1/v2 |
| Windows Real COM Drivers | Windows 11, 10, 8.1, 8, 7, Vista, XP, ME, 98, 95, Windows Server 2022, 2019, 2016, 2012 R2, 2012, 2008 R2, 2008, 2003, 2000, NT |
| Windows Embedded CE | Windows CE 6.0 and 5.0, Windows XP Embedded |
| Linux Real TTY Drivers | Kernel versions: 6.x, 5.x, 4.x, 3.x, 2.6.x, 2.4.x |
| Fixed TTY Drivers | macOS versions: 14, 13, 12, 11, 10.1x, SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X |
| Arm®-based Platform Support | Windows 11, Linux kernel 6.x, 5.x, and 4.x, macOS 14, 13, 12, and 11 |
| Virtual Machine | VMWare ESXi (Windows 11/10), VMware Fusion (Windows on macOS 14, 13, 12, 11, 10.1x), Parallels Desktop (Windows on macOS 14, 13, 12, 11, 10.1x) |
| Android API | Android 3.1.x and later |
| MIB | RFC1213, RFC1317 |
| Security Functions | |
| Authentication | Local database |
| Encryption | HTTPS, AES-128, SHA-1, RSA-1024, SHA-256 |
| Security Protocols | HTTPS (TLS 1.2) |
| Serial Interface | |
| Connector | DB9 male |
| No. of Ports | 1 |
| Serial Standards | RS-232, RS-422, RS-485 |
| Operation Modes | Disabled, Ethernet Modem, Pair Connection, Real COM, Reverse Telnet, RFC2217, TCP Client, TCP Server, UDP |
| Baudrate | Supports standard baudrates: 50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k, 460.8k, 921.6k |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | RTS/CTS (RS-232 only), DTR/DSR (RS-232 only), XON/XOFF |
| Pull High/Low Resistor for RS-485 | 1 kilo-ohm, 150 kilo-ohms |
| RS-485 Data Direction Control | ADDC (automatic data direction control) |
| Terminator for RS-485 | 120 ohms |
| Serial Signals | |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
| Power Parameters | |
| No. of Power Inputs | 1 |
| Input Current | 92.4 mA @ 12 VDC |
| Input Voltage | 12 to 48 VDC |
| Source of Input Power | Power input jack |
| Reliability | Automatic Reboot Trigger, Built-in WDT |
| Physical Characteristics | |
| Housing | Metal |
| Dimensions (with ears) | 75.2 x 80 x 22 mm (2.96 x 3.15 x 0.87 in) |
| Dimensions (without ears) | 52 x 80 x 22 mm (2.05 x 3.15 x 0.87 in) |
| Weight | 340 g (0.75 lb) |
| Installation | Desktop, DIN-rail mounting (with optional kit), Wall mounting |
| Environmental Limits | |
| Operating Temperature | -40 to 75°C (-40 to 167°F) |
| Storage Temperature | -40 to 75°C (-40 to 167°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | |
| EMC | EN 55032/35 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 0.5 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m, IEC 61000-4-8 PFMF, IEC 61000-4-11 |
| Safety | UL 60950-1 |
| Declaration | Green Product, RoHS, CRoHS, WEEE |
| MTBF | 2,231,530 hrs |
| Standards | Telcordia (Bellcore) Standard TR/SR |
