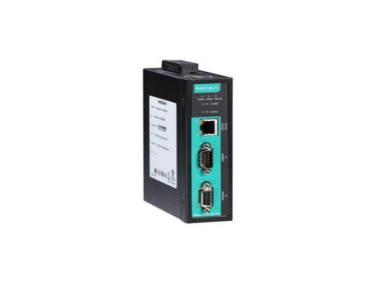

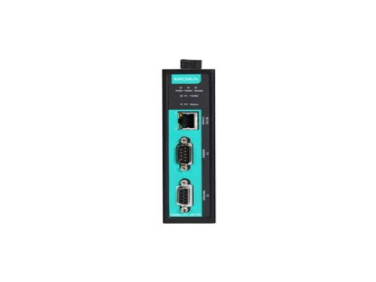

The MOXA MGate 4101-MB-PBS Series Fieldbus Gateways are an outstanding choice for integrating Modbus and PROFIBUS networks. Their reliable performance, advanced features, and ease of use make them a superior solution for a variety of industrial applications. By choosing the MOXA MGate 4101-MB-PBS Series, you ensure seamless network integration, enhanced communication efficiency, and robust security for your industrial automation systems.
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteFirstly, the MOXA MGate 4101-MB-PBS Series excels in bridging Modbus and PROFIBUS networks. This seamless integration ensures efficient and reliable data communication between different network protocols, which is crucial for modern industrial systems.
Moreover, these gateways are designed with ease of use in mind, featuring intuitive configuration tools. The web-based interface simplifies the setup process, enabling quick and hassle-free deployment. This user-friendly design saves time and reduces the complexity of network integration.
Transitioning to performance, the MOXA MGate 4101-MB-PBS Series offers exceptional reliability and stability. These gateways support high data transfer rates, ensuring that your network operates smoothly even under heavy loads. This high performance is essential for maintaining the efficiency of industrial processes.
Furthermore, the MOXA MGate 4101-MB-PBS Series includes advanced diagnostic tools. These tools allow for real-time monitoring and troubleshooting, helping to quickly identify and resolve any network issues. This capability minimizes downtime and keeps your operations running smoothly.
In today’s interconnected industrial environments, security is a top priority. The MOXA MGate 4101-MB-PBS Series is equipped with robust security features, including password protection and data encryption, to safeguard your network against unauthorized access and potential threats.
Additionally, the compact and rugged design of the MOXA MGate 4101-MB-PBS Series makes them suitable for various industrial settings. These gateways are built to withstand harsh conditions, including extreme temperatures and electromagnetic interference, ensuring long-term reliability and durability.
For manufacturing automation, the MOXA MGate 4101-MB-PBS Series provides seamless communication between Modbus and PROFIBUS devices. This integration enhances operational efficiency and ensures reliable data exchange, which is vital for automated manufacturing processes.
In the energy and utilities sector, these gateways facilitate efficient network integration, optimizing the management of energy distribution systems. They ensure reliable communication between different network protocols, helping to enhance system reliability and performance.
In transportation systems, the MOXA MGate 4101-MB-PBS Series ensures robust and reliable network connectivity. These gateways can be used in traffic management systems, railway communication networks, and more, providing seamless data transmission in critical applications.
Building automation systems can greatly benefit from the MOXA MGate 4101-MB-PBS Series. These gateways enable efficient communication between various devices and systems, improving overall building management and energy efficiency.
| Category | Specification |
|---|---|
| Ethernet Interface | 10/100BaseT(X) Ports (RJ45 connector): 2 Auto MDI/MDI-X connection Magnetic Isolation Protection: 1.5 kV (built-in) |
| Ethernet Software Features | Industrial Protocols: PROFINET IO Device, Modbus TCP Client (Master), Modbus TCP Server (Slave), EtherNet/IP Adapter Configuration Options: Web Console (HTTP/HTTPS), Device Search Utility (DSU), Telnet Console Management: ARP, DHCP Client, DNS, HTTP, HTTPS, SMTP, SNMP Trap, SNMPv1/v2c/v3, TCP/IP, Telnet, SSH, UDP, NTP Client MIB: RFC1213, RFC1317 Time Management: NTP Client |
| Security Functions | Authentication: Local database Encryption: HTTPS, AES-128, AES-256, SHA-256 Security Protocols: SNMPv3, SNMPv2c Trap, HTTPS (TLS 1.3) |
| Serial Interface | Console Port: RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1) No. of Ports: 1 Connector: DB9 male Serial Standards: RS-232/422/485 Baudrate: 50 bps to 921.6 kbps Data Bits: 7, 8 Parity: None, Even, Odd, Space, Mark Stop Bits: 1, 2 Flow Control: DTR/DSR, RTS/CTS RS-485 Data Direction Control: Automatic Data Direction Control (ADDC) Pull High/Low Resistor for RS-485: 1 kilo-ohm, 150 kilo-ohms Terminator for RS-485: 120 ohms Isolation: 2 kV (I models) |
| Serial Signals | RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND RS-422: Tx+, Tx-, Rx+, Rx-, GND RS-485-2w: Data+, Data-, GND RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND |
| Serial Software Features | Configuration Options: MGate Manager Industrial Protocols: Modbus RTU/ASCII Master, Modbus RTU/ASCII Slave, PROFIBUS DP-V0 Slave |
| Modbus RTU/ASCII | Mode: Master, Slave Functions Supported: 1, 2, 3, 4, 5, 6, 15, 16, 23 Max. No. of Commands: 100 Input Data Size: 7744 bytes Output Data Size: 7744 bytes |
| PROFIBUS Interface | Industrial Protocols: PROFIBUS DP No. of Ports: 1 Connector: DB9 female Baudrate: 9600 bps to 12 Mbps Isolation: 2 kV (built-in) Signals: PROFIBUS D+, PROFIBUS D-, RTS, Signal Common, 5V |
| PROFIBUS | Rotary Switch: PROFIBUS addresses 0-99 (addresses 100-125 supported through software configuration) Mode: DP-V0 Slave Max. No. of Master Connections: 1 Max. No. of PROFIBUS I/O Modules: 24 per page Max. No. of PROFIBUS Pages: 32 Input Data Size: 7744 bytes Output Data Size: 7744 bytes |
| Power Parameters | Input Voltage: 12 to 48 VDC Input Current: 275 mA @ 12 VDC Power Connector: Screw-fastened Euroblock terminal |
| Relays | Contact Current Rating: Resistive load: 1 A @ 24 VDC |
| Physical Characteristics | Housing: Metal Dimensions: 36 x 105 x 140 mm (1.42 x 4.14 x 5.51 in) Weight: 500 g (1.10 lb) IP Rating: IP30 Note: It is recommended to attach the M3x3mm Nylok screws at the rear side |
| Environmental Limits | Operating Temperature: MGate 4101I-MB-PBS: 0 to 60°C (32 to 140°F) MGate 4101I-MB-PBS-T: -40 to 75°C (-40 to 167°F) MGate 4101-MB-PBS: 0 to 60°C (32 to 140°F) MGate 4101-MB-PBS-T: -40 to 75°C (-40 to 167°F) Storage Temperature (package included): -40 to 85°C (-40 to 185°F) Ambient Relative Humidity: 5 to 95% (non-condensing) |
| Standards and Certifications | EMC: EN 55032/35 EMI: CISPR 32, FCC Part 15B Class A EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m IEC 61000-4-8 PFMF Safety: IEC 60950-1, UL 60950-1, IEC 62368-1, UL 62368-1 Hazardous Locations: ATEX, Class I Division 2, IECEx Freefall: IEC 60068-2-32 Shock: IEC 60068-2-27 Vibration: IEC 60068-2-6, IEC 60068-2-64 |
| MTBF | Time: MGate 4101-MB-PBS models: 1,537,948 hrs MGate 4101I-MB-PBS models: 1,315,666 hrs Standards: Telcordia SR332 |
