NG # 03316-HW-MAXO-025

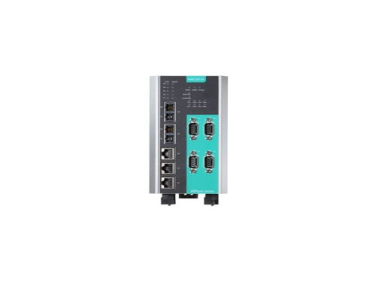

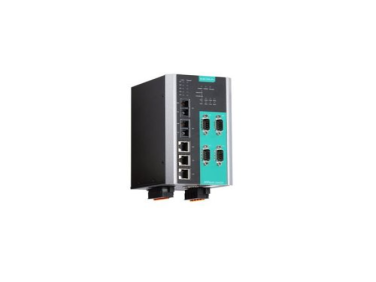

The MOXA NPort S9450I Serial Device Server are an excellent choice for enhancing industrial communication. With their high performance, robust security features, and flexible installation options, they offer a reliable and efficient solution for various industrial applications. Whether you’re in automation, transportation, or energy, the NPort S9450I can help you achieve seamless connectivity and improved operational efficiency.
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteFirstly, the NPort S9450I series is equipped with a high-speed processor, ensuring efficient and stable data transmission. Furthermore, with a built-in Ethernet switch, it facilitates easy network expansion without additional hardware.
The models come with 4 or 8 serial ports, supporting RS-232/422/485 communication standards. Thus, they offer versatile connectivity options for various industrial devices.
Moreover, security is paramount. These device servers incorporate advanced security features such as SSL and SSH protocols, protecting data integrity and preventing unauthorized access.
Designed for harsh industrial conditions, the NPort S9450I operates reliably in temperatures ranging from -40 to 75°C. As a result, they are suitable for use in extreme environments.
Additionally, the NPort S9450I series supports both DIN-rail and wall mounting. This flexibility ensures easy installation in diverse industrial settings.
To ensure uninterrupted operation, the NPort S9450I is equipped with dual power inputs. Therefore, it guarantees continuous performance even if one power source fails.
| Category | Specification |
|---|---|
| Input/Output Interface | |
| Alarm Contact Channels | 2, Resistive load: 1 A @ 24 VDC |
| Digital Input Channels | 2 |
| Digital Inputs | +13 to +30 V for state 1, -30 to +1 V for state 0, Max. input current: 8 mA |
| Ethernet Interface | |
| Ports | 10/100BaseT(X) Ports (RJ45 connector), 5 |
| Magnetic Isolation Protection | 1.5 kV (built-in) |
| Optical Fiber | |
| Standards | |
| IEEE 802.1D-2004 | for Spanning Tree Protocol |
| IEEE 802.1p | for Class of Service |
| IEEE 802.1Q | for VLAN Tagging |
| IEEE 802.1w | for Rapid Spanning Tree Protocol |
| IEEE 802.1X | for authentication |
| IEEE 802.3 | for 10BaseT |
| IEEE 802.3ad | for Port Trunk with LACP |
| IEEE 802.3u | for 100BaseT(X) and 100BaseFX |
| Switch Properties | |
| IGMP Groups | 256 |
| Max. No. of VLANs | 64 |
| Priority Queues | 4 |
| VLAN ID Range | VID 1 to 4094 |
| Ethernet Software Features | |
| Configuration Options | Web Console (HTTP/HTTPS), Windows Utility, Device Search Utility (DSU), MCC Tool, Command Line Interface (CLI) through Serial/Telnet/SSH |
| Management | DHCP Client, DHCP Option 82, HTTP, IEC 61850 MMS, IPv4, LLDP, Port Mirror, RARP, RMON, SMTP, SNMPv1/v2c/v3, Syslog, Telnet, TFTP, Web Console |
| Filter | GMRP, GVRP, IGMP v1/v2 |
| Windows Real COM Drivers | Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded |
| Linux Real TTY Drivers | Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x |
| Fixed TTY Drivers | SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X, macOS 10.12, macOS 10.13, macOS 10.14, macOS 10.15 |
| Android API | Android 3.1.x and later |
| Industrial Protocols | Modbus TCP Server (Slave), DNP3 TCP Outstation |
| Time Management | NTP Server/Client, SNTP |
| MIB | Bridge MIB, Device Settings MIB, Ethernet-like MIB, MIB-II, P-BRIDGE MIB, Q-BRIDGE MIB, RFC1213, RFC1317, RMON MIB Groups 1, 2, 3, 9, RSTP MIB |
| Redundancy Protocols | RSTP, Turbo Chain, Turbo Ring v1, Turbo Ring v2 |
| Security | HTTPS/SSL, Local Account Accessibility, TACACS+, RADIUS, SSH |
| Serial Interface | |
| Connector | DB9 male |
| No. of Ports | 4 |
| Serial Standards | RS-232, RS-422, RS-485 |
| Operation Modes | Real COM mode, RFC2217 mode, TCP Client mode, TCP Server mode, UDP mode, Modbus mode, DNP3 mode, DNP3 Raw Socket mode, Disabled |
| Baudrate | 50 bps to 921.6 kbps (supports non-standard baudrates) |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | None, RTS/CTS, XON/XOFF |
| Isolation | 2 kV |
| Surge | 4 kV |
| RS-485 Data Direction Control | ADDC® (automatic data direction control) |
| Pull High/Low Resistor for RS-485 | 1 kilo-ohm, 150 kilo-ohms |
| Terminator for RS-485 | 120 ohms |
| Console Port | RS-232 (TxD, RxD, GND), 10-pin RJ45 (19200, n, 8, 1) |
| Serial Signals | RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND; RS-422: Tx+, Tx-, Rx+, Rx-, GND; RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND; RS-485-2w: Data+, Data-, GND |
| DIP Switch Configuration | Ethernet Interface: Turbo Ring, Master, Coupler, Reserved |
| Modbus TCP | |
| Max. No. of Client Connections | 32 |
| Max. No. of Server Connections | 16 |
| DNP3 (Transparent) | |
| Max. No. of Master Connections | 16 |
| Max. No. of Outstation Connections | 32 |
| Power Parameters | |
| No. of Power Inputs | 2 |
| Power Connector | 1 removable 5-contact terminal block(s) |
| Reverse Polarity Protection | Supported |
| Input Current | 80 mA @ 110 VDC |
| Input Voltage | 110/220 VAC/VDC (110 to 220 VAC, 110 to 220 VDC) |
| Physical Characteristics | |
| Housing | Metal |
| Dimensions | 80 x 160 x 109 mm (3.15 x 6.30 x 4.29 in) |
| Weight | Product only: 2.54 kg (5.60 lb) |
| Installation | DIN-rail mounting, Wall mounting (with optional kit) |
| Environmental Limits | |
| Operating Temperature | -40 to 85°C (-40 to 185°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | |
| EMC | EN 61000-6-2/-6-4 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV; IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m; IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV; IEC 61000-4-5 Surge: Power: 6 kV; Signal: 4 kV; IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m; IEC 61000-4-8 PFMF; IEC 61000-4-11 |
| Environmental Testing | IEC 60068-2-2, IEC 60068-2-14 |
| Power Substation | IEC 61850-3, IEEE 1613 |
| Hazardous Locations | UL/cUL Class I Division 2 Groups A/B/C/D |
| Safety | EN 61010-2-201, UL 61010-2-201 |
| Shock | IEC 60068-2-27 |
| Vibration | IEC 60068-2-6, IEC 60068-2-64 |
| Declaration | Green Product: RoHS, CRoHS, WEEE |
| MTBF | 347,436 hrs (Telcordia SR332) |
