NG # 03304-HW-MAXO-013

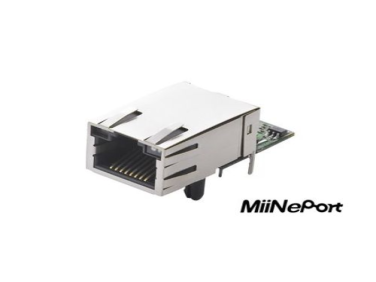

The MOXA MiiNePort E1 Series Serial Embedded Modules are an exceptional choice for anyone looking to enhance their embedded applications with reliable, high-performance serial connectivity. From their robust design and high-speed data transmission to their advanced security features and ease of integration, these modules offer unparalleled value. Embrace the future of connectivity with MOXA MiiNePort E1 Series and experience the difference in your embedded systems.
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteFirstly, the MOXA MiiNePort E1 Series modules boast a compact form factor, making them perfect for space-constrained applications. Despite their small size, these modules are built to last, with robust construction that ensures durability and reliability in various environments.
Moreover, these modules support high-speed data transmission, with baud rates of up to 921.6 kbps. This ensures that your data is transmitted quickly and efficiently, reducing latency and improving overall system performance.
Transitioning to another key aspect, the MOXA MiiNePort E1 Series is designed for easy integration. With comprehensive driver support and compatibility with a wide range of operating systems, these modules can be seamlessly incorporated into your existing systems.
Furthermore, security is paramount in today’s connected world. The MOXA MiiNePort E1 Series includes advanced security features such as SSL/TLS encryption, ensuring that your data remains secure during transmission.
Additionally, these modules are designed with energy efficiency in mind. The low power consumption of the MOXA MiiNePort E1 Series helps to reduce operational costs and extends the lifespan of your embedded systems.
For industrial automation applications, the MOXA MiiNePort E1 Series provides reliable serial connectivity, ensuring smooth communication between various devices and systems. This enhances productivity and operational efficiency.
In transportation systems, these modules offer robust and stable connectivity solutions. They can be used in everything from traffic control systems to onboard communication networks, providing seamless data transmission in critical applications.
Medical equipment requires highly reliable and secure data transmission. The MOXA MiiNePort E1 Series meets these requirements, making it an excellent choice for medical device manufacturers looking to integrate advanced connectivity solutions into their products.
Retail environments can benefit significantly from the MOXA MiiNePort E1 Series, particularly in point-of-sale (POS) systems. These modules enable fast and secure transaction processing, improving customer service and satisfaction.
| Category | Specification |
|---|---|
| CPU | 32-bit Arm Core |
| Memory | Flash: 2 MB SDRAM: 4 MB |
| Input/Output Interface | Configurable DIO Channels (by software): 1 Digital Input Channels: 1 Digital Output Channels: 1 |
| Ethernet Interface | 10/100BaseT(X) Ports, Auto MDI/MDI-X: 8-pin RJ45 Magnetic Isolation Protection: 1.5 kV (built-in) |
| Ethernet Software Features | Configuration Options: Web Console (HTTP), Windows Utility, Telnet Console, Serial Console Management: ARP, BOOTP, Device Search Utility (DSU), DHCP Client, HTTP, IPv4, SMTP, SNMPv1, TCP/IP, Telnet, TFTP, ICMP Windows Real COM Drivers: Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded Linux Real TTY Drivers: Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x Fixed TTY Drivers: SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X Android API: Android 3.1.x and later |
| Serial Interface | No. of Ports: 1 Serial Standards: TTL Operation Modes: MiiNePort E1 Series: Real COM mode, RFC2217 mode, TCP Client mode, TCP Server mode, UDP mode MiiNePort E1-SDK: Real COM mode, Ethernet Modem mode, Real COM mode, TCP Client, TCP Server, UDP mode, RFC2217 Baudrate: MiiNePort E1 Series: 50 bps to 230.4 kbps MiiNePort E1-H/-SDK Series: 50 bps to 921.6 kbps Data Bits: 5, 6, 7, 8 Stop Bits: 1, 1.5, 2 Parity: None, Even, Odd, Space, Mark Flow Control: None, RTS/CTS, XON/XOFF |
| Serial Signals | TTL: TxD, RxD, RTS, CTS, RST (reset circuit), GND |
| NetEZ Technology | NetEZ Functions: ExTrigger, SCM (Serial Command Mode), AutoCFG, MCSC (Multi-Channel Serial Communication) |
| Serial Software Features | Serial to Ethernet Sample Source Code: MiiNePort E1-SDK (Integrated in MiiNePort-IDE): 1. TCP Server Echo 2. TCP Server to Serial (Single connection) 3. TCP Server to Serial (Multi-connection) 4. TCP Client Echo 5. TCP Client to Serial (Startup) 6. TCP Client to Serial (Any character) 7. TCP Client to Serial (Designed destination TCP/IP port from serial) 8. UDP Echo 9. UDP to Serial |
| Power Parameters | Input Current: MiiNePort E1 Series: 160 mA @ 3.3 VDC max. MiiNePort E1-H/-SDK Series: 195 mA @ 3.3 VDC max. Input Voltage: 3.3 VDC |
| Physical Characteristics | Dimensions: MiiNePort E1-ST/-SDK Series: 140 x 100 mm (5.51 x 3.94 in) MiiNePort E1/E1-H/E1-SDK Series: 33.9 x 16.25 x 13.5 mm (1.33 x 0.64 x 0.53 in) Weight: MiiNePort E1/E1-H/E1-SDK Series: 9 g (0.02 lb) Form Factor Type: Drop-in modules |
| Environmental Limits | Operating Temperature: Standard models: 0 to 55˚C (32 to 131˚F) Wide Temp. models: -40 to 85˚C (-40 to 185˚F) Storage Temperature (package included): -40 to 60°C (-40 to 140°F) Ambient Relative Humidity: 5 to 95% (non-condensing) |
| Standards and Certifications | EMC: EN 55032/35 EMI: CISPR 32, FCC Part 15B Class B EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 0.5 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF IEC 61000-4-11 Environmental Testing: IEC 60068-2-1 IEC 60068-2-3 Shock: IEC 60068-2-27 Vibration: IEC 60068-2-6 |
| Declaration | Green Product: RoHS, CRoHS, WEEE |
| MTBF | Time: 5,515,294 hrs Standards: Telcordia SR332 |
